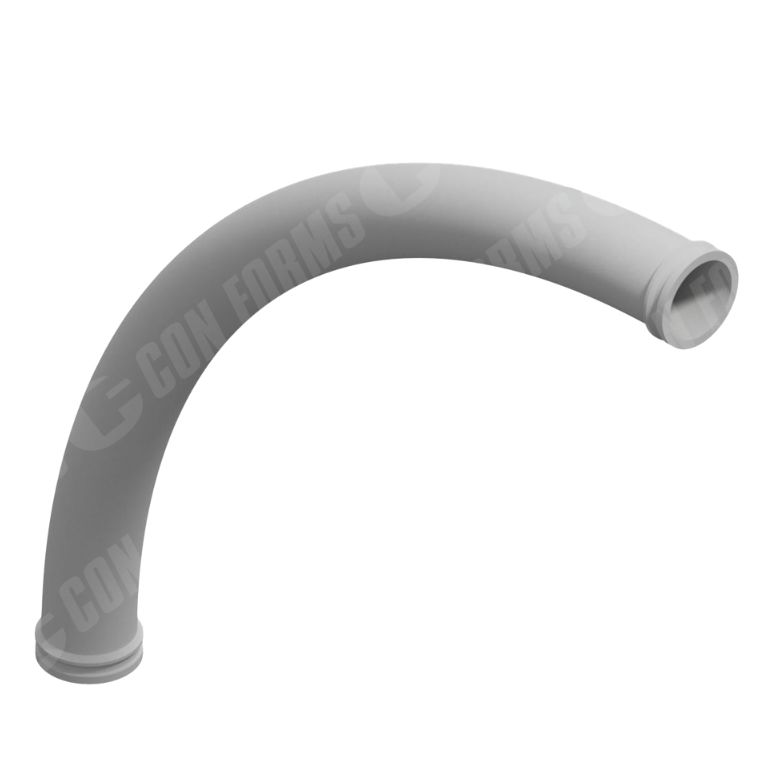

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN100/4″ | WT:0.25 | BA: 45 | CLR: 18 | HD | 16.9″ HGT

Description

Placing Elbow/Bend | ID: DN100/4″ | WT:0.25 | BA: 45 | CLR: 18 | HD | 16.9″ HGT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN100/4″, ANGLE [DEGREES] – 45°, END STYLE – Hevi-Duty™, Centerline Radius (CLR) – 18.00″, WALL THICKNESS [IN/MM] – 0.250″ / 6.35mm, Height (face to highest point) – 16.90″ / 429mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
