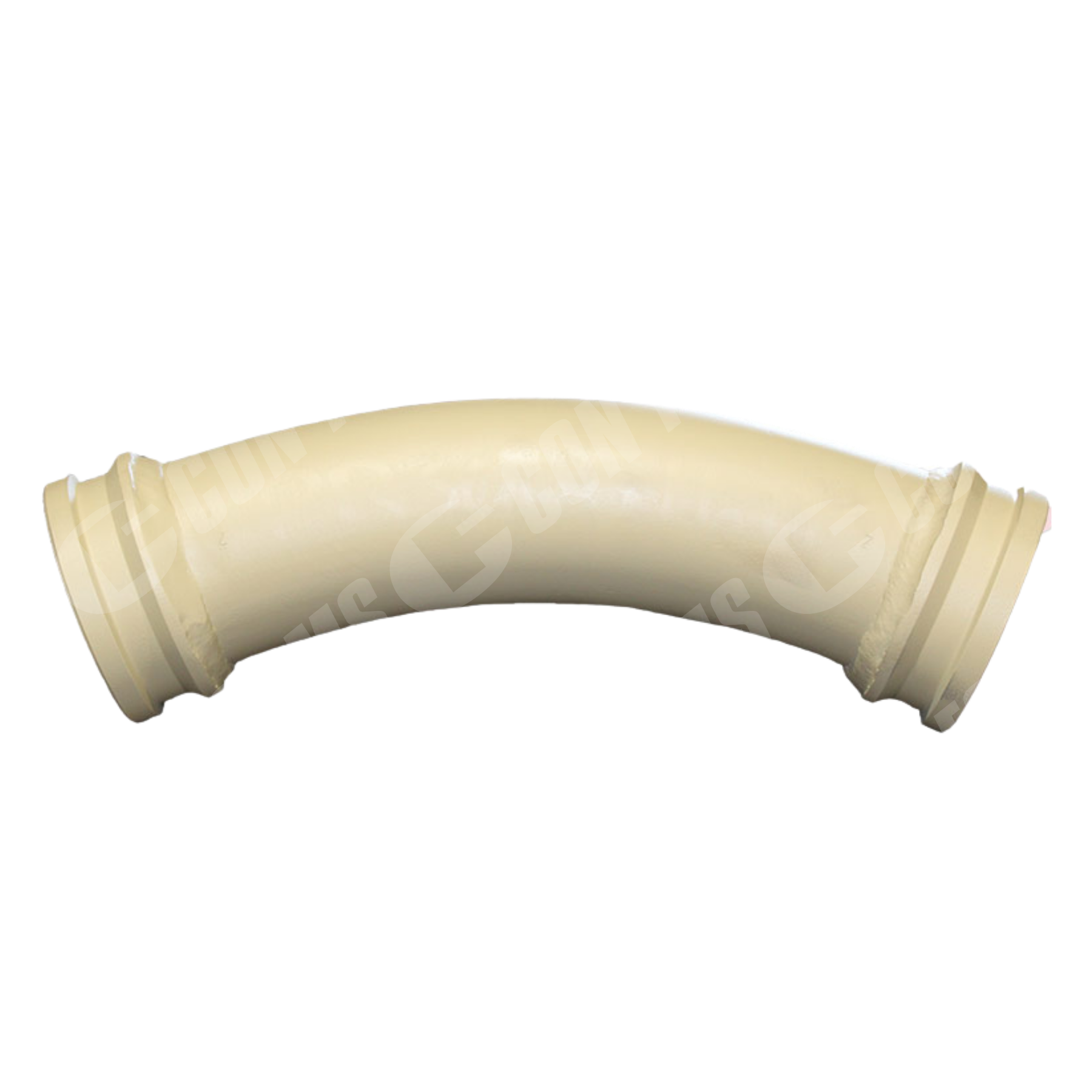

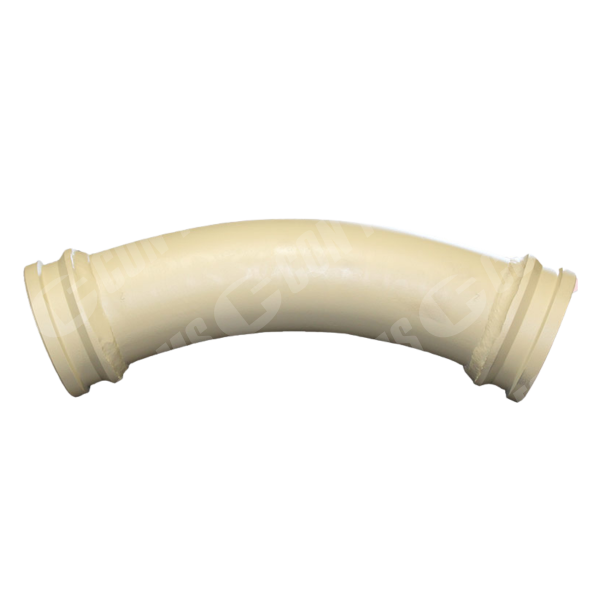

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN100/4″ | WT:0.25 | BA: 45 | CLR: 48 | HD | 38.1″ HGT

$478.84

SKU: PB404548D Categories: ,

Description

Placing Elbow/Bend | ID: DN100/4″ | WT:0.25 | BA: 45 | CLR: 48 | HD | 38.1″ HGT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN100/4″, ANGLE [DEGREES] – 45°, END STYLE – Hevi-Duty™, Centerline Radius (CLR) – 48.00″, WALL THICKNESS [IN/MM] – 0.250″ / 6.35mm, Height (face to highest point) – 38.10″ / 968mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,

Additional information

Weight 42.000000000 lbs
