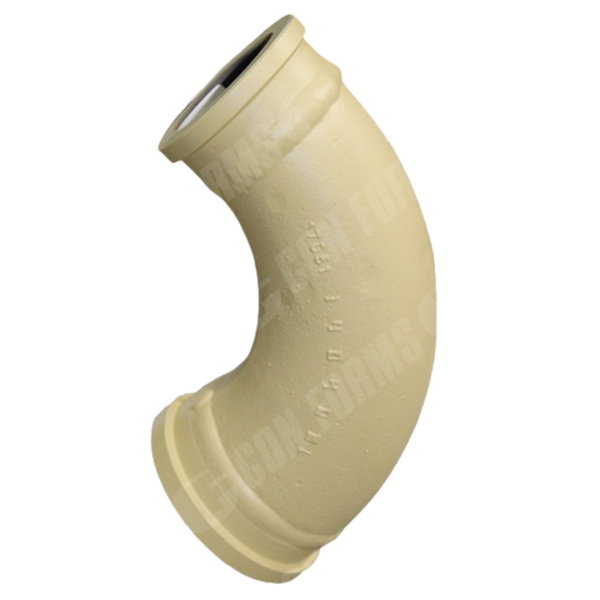

Reducing Elbow/Bend – Reducing Elbow/Bend | DN150/6″ Hevi-Duty™ – DN127/5″ Hevi-Duty™ | WT: 0.312 | BA: 90 | CLR: 9″ | HT

Description

Reducing Elbow/Bend | DN150/6″ Hevi-Duty™ – DN127/5″ Hevi-Duty™ | WT: 0.312 | BA: 90 | CLR: 9″ | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INLET DIAMETER [IN] – DN150/6″, OUTLET DIAMETER [IN] – DN127/5″, ANGLE [DEGREES] – 90°, Inlet End Style – Hevi-Duty™, Outlet End Style – Hevi-Duty™, HEAT TREATMENT – Heat Treated, Center-to-Face – 90° Elbow – 267 x 267mm, Centerline Radius (CLR) – 9.00″, WALL THICKNESS [IN/MM] – 0.312″ / 7.9mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
