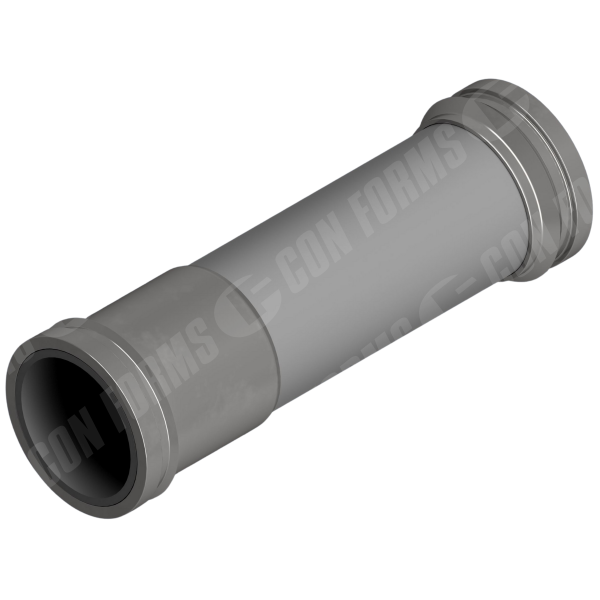

Endurance TW462 Std End Boom Pipe – Boom Pipe | ID: DN117/4.6″ | OAL: 177.25″ | WT:2.2mm + 1.8mm | Metric CCI

$1,138.88

SKU: B46TWULH725M Category:

Description

Boom Pipe | ID: DN117/4.6″ | OAL: 177.25″ | WT:2.2mm + 1.8mm | Metric CCI TW462 is the most versatile DN117/4.6 Twin-Wall™ System featuring a wear resistant pipe liner and chrome carbide ends to protect against excessive wear. Best paired with twin wall elbows, reducers, and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN117/4.6″, END STYLE – Metric CCI, LENGTH [IN/MM] – 177.25″ / 4502mm, Wall Thickness – Twin Wall – 2.2mm + 1.8mm, Wall Type – Twin-Wall™ – Ultra Light Weight, MODEL – TW462 Standard End Boom Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 105 / 1525, Weight – F.W.C. / foot – 24.7 lbs/ft (11.2 kg/ft), Hardness – Up to 68HRc, LINER TYPE – Hardened Steel Liner, Typical Application – Boom,

Additional information

Weight 126.000000000 lbs
