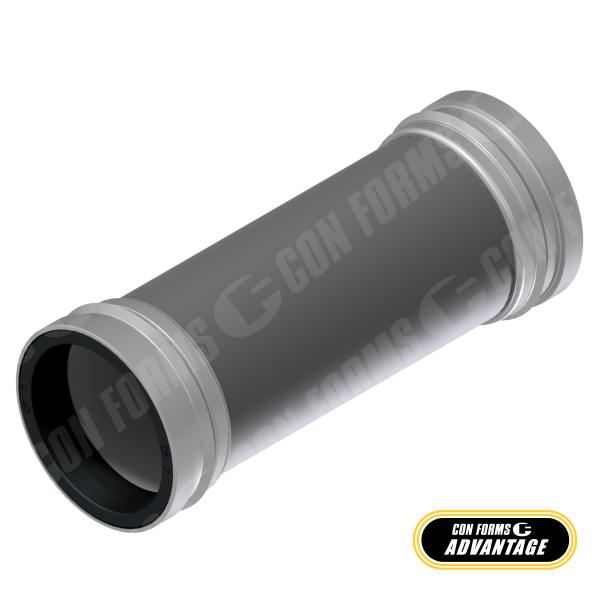

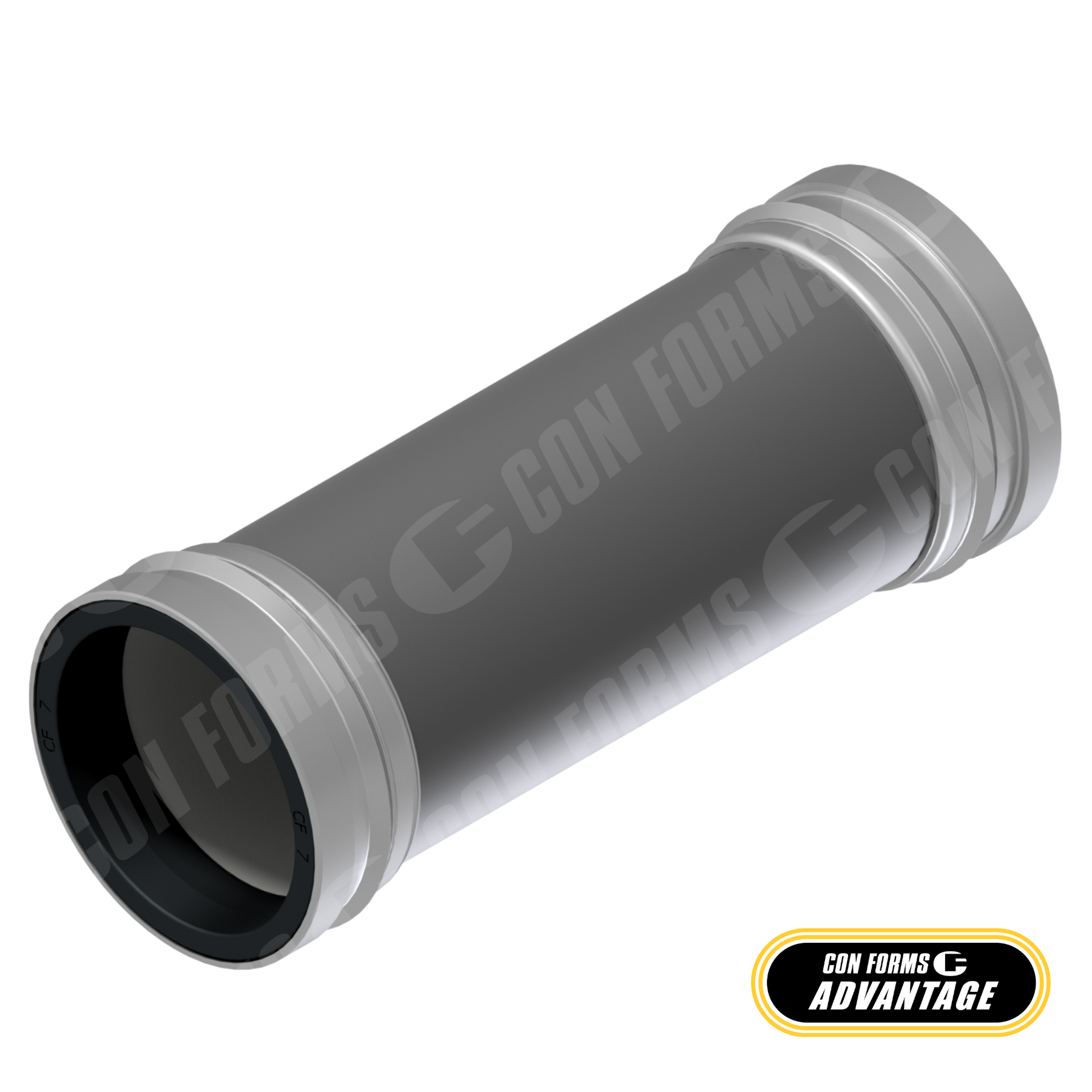

Advantage Boom Pipe – Boom Pipe | ID: DN125/4.8″ | OAL: 100″ | WT:2.8mm + 1.8mm | Metric

$473.45

SKU: B48TWLA000M Category:

Description

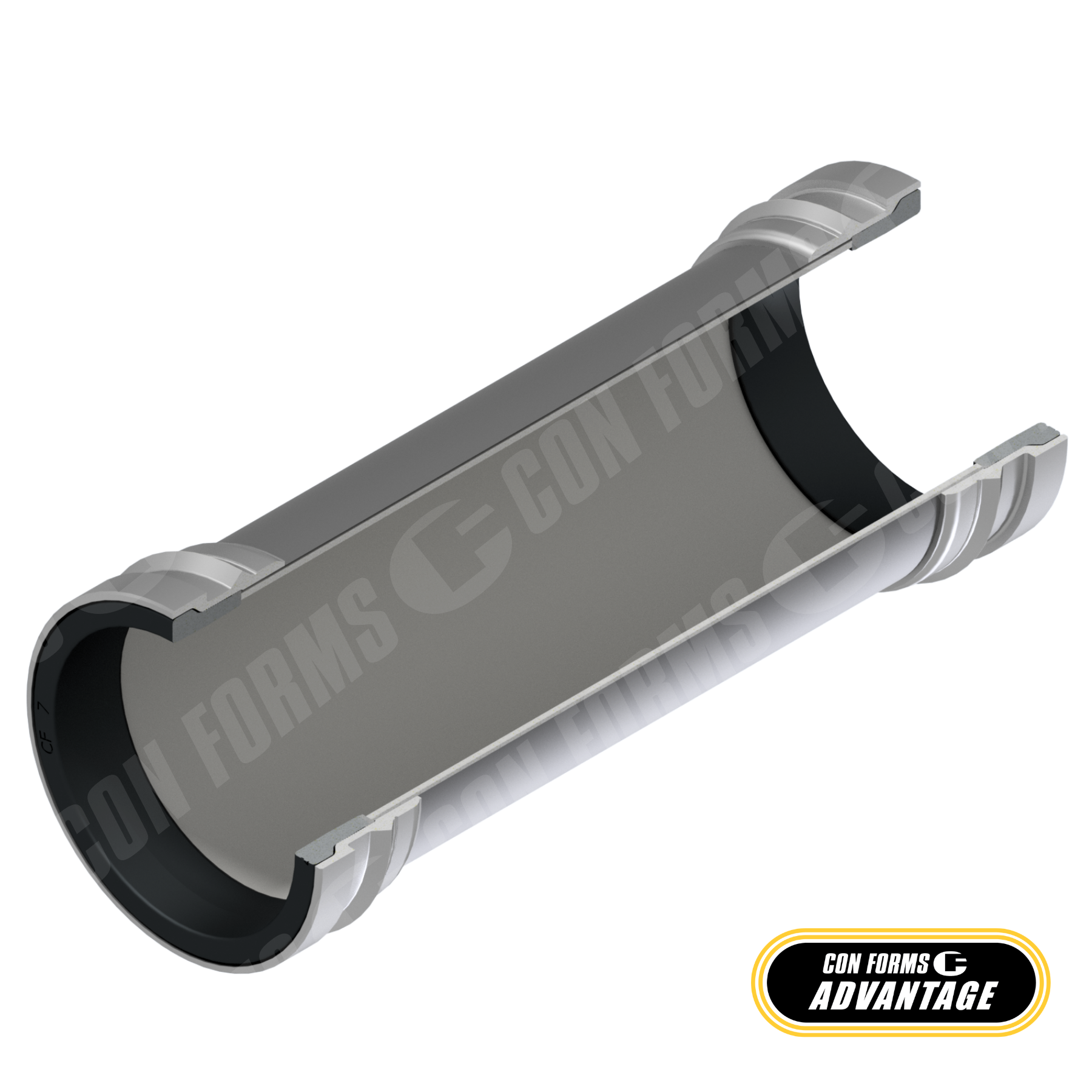

Boom Pipe | ID: DN125/4.8″ | OAL: 100″ | WT:2.8mm + 1.8mm | Metric Advantage Boom Pipes have a wear resistant, hardened steel liner to protect against excessive wear. Best paired with TW275 elbows and CCI-lined reducers and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric, LENGTH [IN/MM] – 100.00″ / 2540mm, Wall Thickness – Twin Wall – 2.8mm + 1.8mm, Wall Type – Twin-Wall™ – Light Weight, MODEL – Advantage Boom Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 90 / 1305, Weight – F.W.C. / foot – 28.9 lbs/ft (13.2 kg/ft), Hardness – Up to 68HRc, LINER TYPE – Hardened Steel Liner, Typical Application – Boom, CLASSIFICATION – Advantage,

Additional information

Weight 0.000000000 lbs
