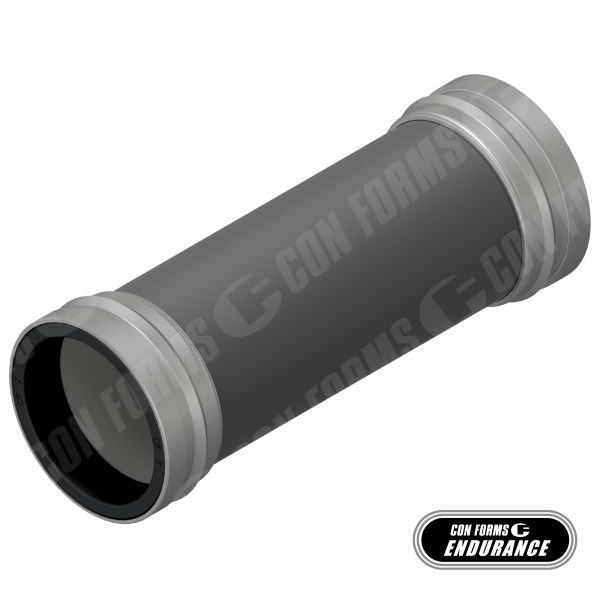

Endurance Boom Pipe – Boom Pipe | ID: DN125/4.8″ | OAL: 157.25″ | WT:3.3mm + 1.8mm | Metric CCI

Description

Boom Pipe | ID: DN125/4.8″ | OAL: 157.25″ | WT:3.3mm + 1.8mm | Metric CCI Endurance is the longest lasting Twin-Wall™ System featuring the thickest induction hardened inner liner and chrome carbide weld ends to protect the pipe against excessive wear. Best paried with CCI-lined elbows, reducers, and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric CCI, LENGTH [IN/MM] – 157.25″ / 3994mm, Wall Thickness – Twin Wall – 3.3mm + 1.8mm, Wall Type – Twin-Wall™ – Standard Weight, MODEL – Endurance Boom Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 95 / 1375, Hardness – Up to 68HRc, LINER TYPE – Hardened Steel Liner, Typical Application – Boom, CLASSIFICATION – Endurance,
