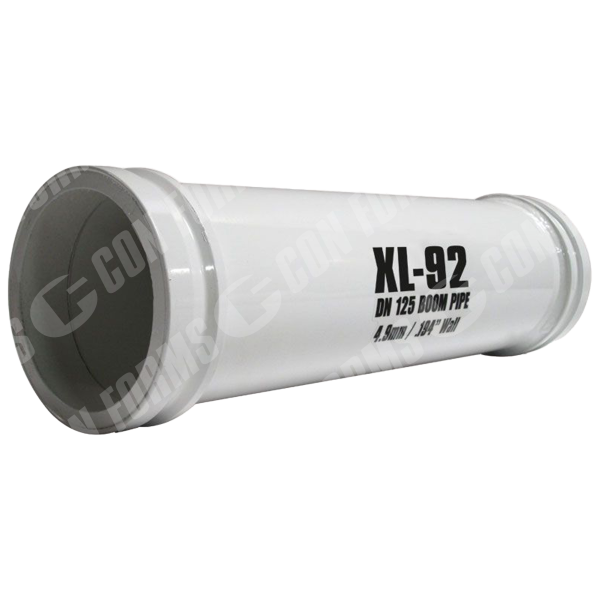

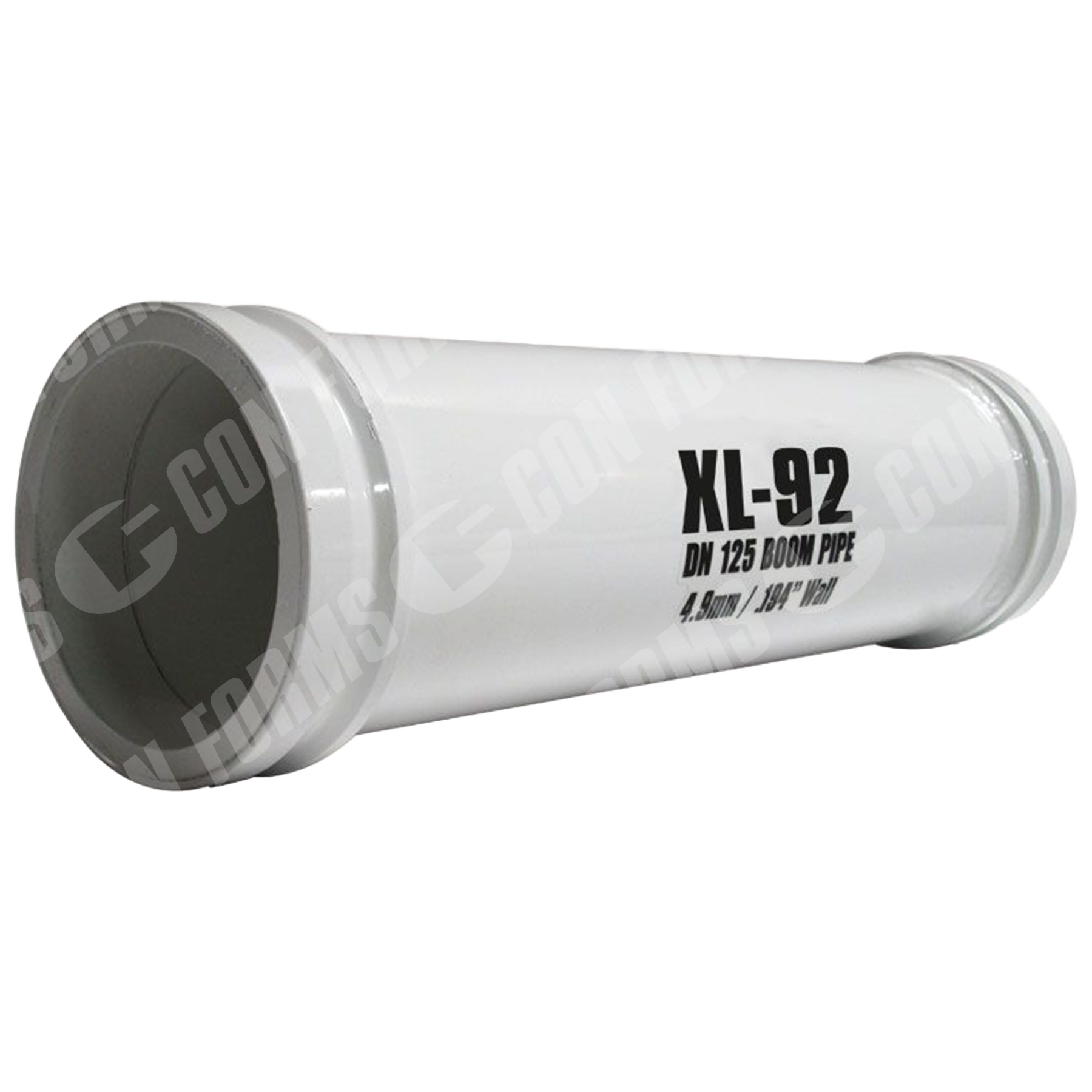

XL-92 Boom Pipe – Boom Pipe | ID: DN125/4.8″ | OAL: 138.19″ | WT: 7 GA (0.18″) | Metric | Non-heat treated

$531.19

SKU: B507D818M Categories: ,

Description

Boom Pipe | ID: DN125/4.8″ | OAL: 138.19″ | WT: 7 GA (0.18″) | Metric | Non-heat treated XL-92 single wall non-heat treated deck and boom pipe is designed for general purpose applications and average life cycles. Best paired with single wall reducers and cast steel elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric, LENGTH [IN/MM] – 138.19″ / 3510mm, HEAT TREATMENT – Non-heat treated, WALL THICKNESS [IN/MM] – 7GA (0.18″), Wall Type – Single Wall, MODEL – XL-92 Boom Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 120 / 1750, Weight – F.W.C. / foot – 29.5 lbs/ft (13.4 kg/ft), Weight – Empty / foot – 10.1 lbs/ft (4.6 kg/ft), Typical Application – Boom,

Additional information

Weight 0.000000000 lbs
