Guardian Boom Pipe – Boom Pipe | ID: DN125/4.8″ | OAL: 81.69″ | WT: Super 7 GA (0.188″) | Metric | HT

$455.66

SKU: B4878169MH Category:

Description

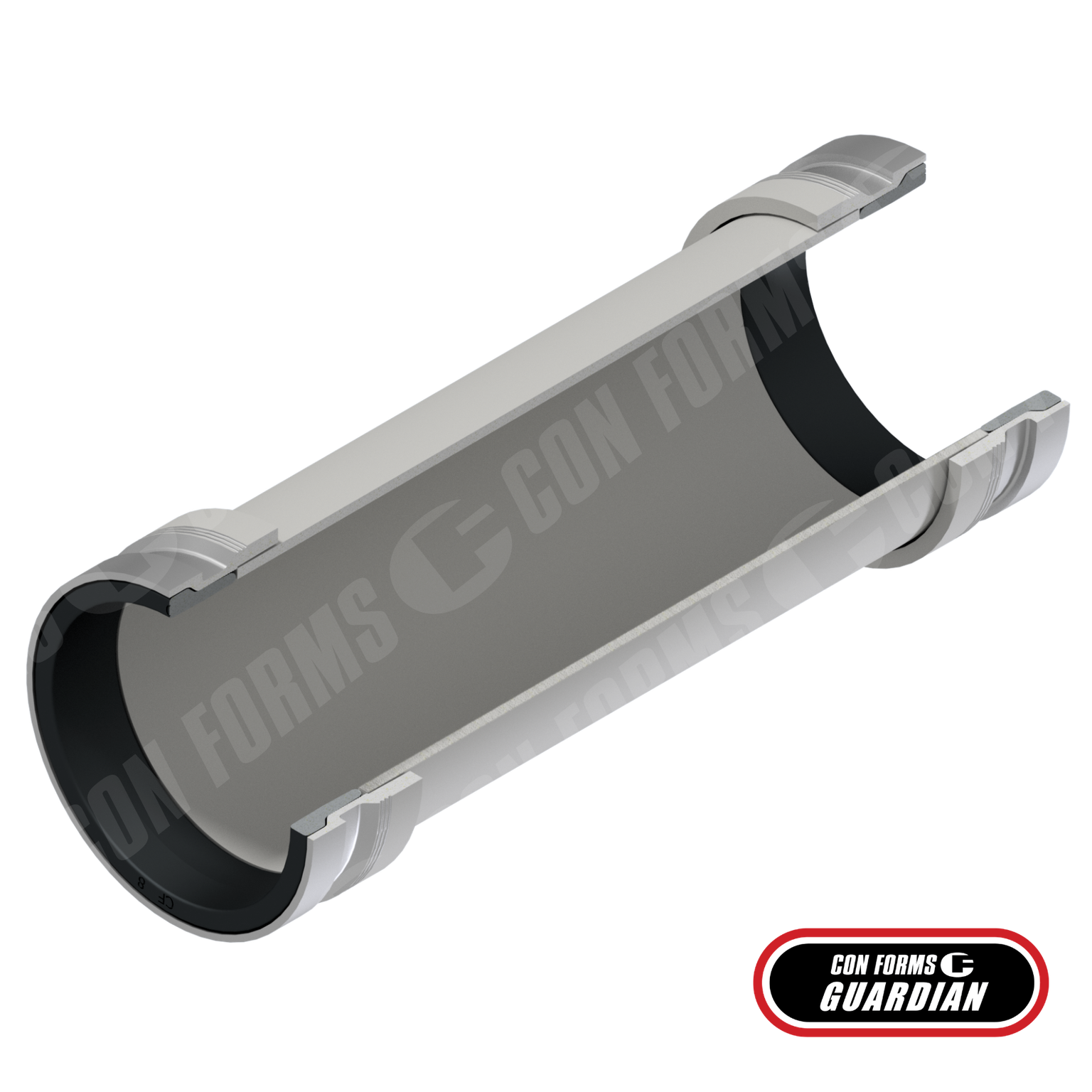

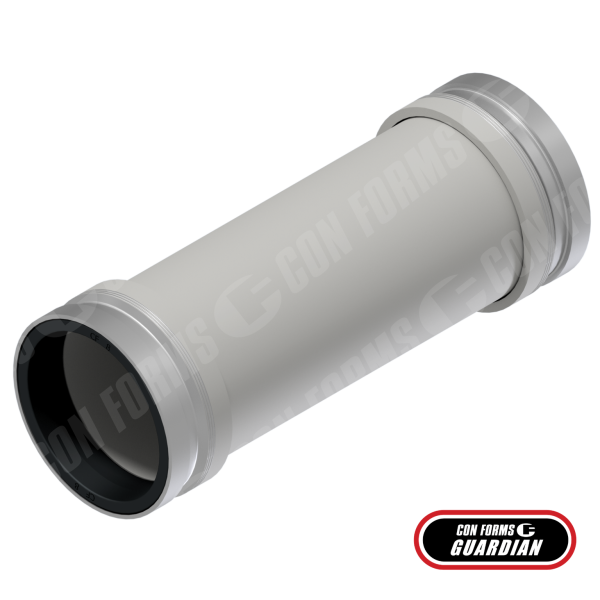

Boom Pipe | ID: DN125/4.8″ | OAL: 81.69″ | WT: Super 7 GA (0.188″) | Metric | HT Guardian is an induction hardened single-wall pipe with CCI-lined (chrome carbide) weld ends for added pipe end protection. Best matched up with cast manganese elbows, and hardened steel reducers and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric CCI, LENGTH [IN/MM] – 81.69″ / 2075mm, HEAT TREATMENT – Heat Treated, WALL THICKNESS [IN/MM] – Super 7GA (0.188″), Wall Type – Single Wall, MODEL – Guardian Boom Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 100 / 1450, Weight – F.W.C. / foot – 29.5 lbs/ft (13.4 kg/ft), Weight – Empty / foot – 10.1 lbs/ft (4.6 kg/ft), Hardness – Up to 57HRc, Typical Application – Boom, CLASSIFICATION – Guardian,

Additional information

Weight 76.950000000 lbs
