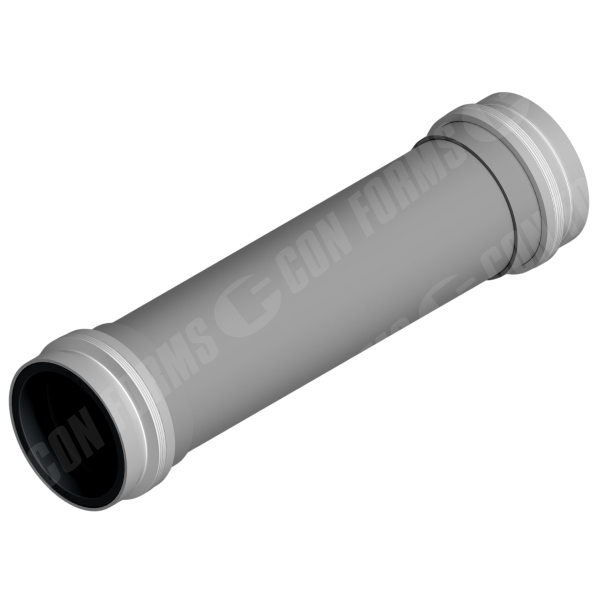

Guardian Plus Boom Pipe – Boom Pipe | ID: DN125/4.8″ | OAL: 123.44″ | WT: Super 7 GA (0.188″) | Metric CCI | HT

$712.74

SKU: BC57C343MH Category:

Description

Boom Pipe | ID: DN125/4.8″ | OAL: 123.44″ | WT: Super 7 GA (0.188″) | Metric CCI | HT Ultra Plus single wall boom and deck pipe is hardened through a multiple step heat treating process for extended life. Utilizes CCI-Lined weld ends. Best paired with CCI-Lined elbows, reducers and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric CCI, LENGTH [IN/MM] – 123.44″ / 3135mm, HEAT TREATMENT – Heat Treated, WALL THICKNESS [IN/MM] – Super 7GA (0.188″), Wall Type – Single Wall, MODEL – Guardian Plus Boom Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 100 / 1450, Weight – F.W.C. / foot – 29.5 lbs/ft (13.4 kg/ft), Weight – Empty / foot – 10.1 lbs/ft (4.6 kg/ft), Hardness – Up to 68HRc, Typical Application – Boom,

Additional information

Weight 0.000000000 lbs
