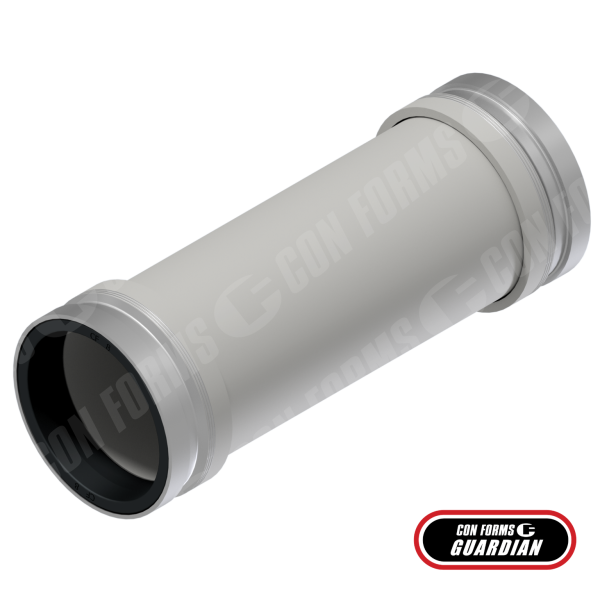

Guardian Boom Pipe – Boom Pipe | ID: DN125/4.8″ | OAL: 178″ | WT:Super 7GA (0.188″) | Metric CCI | HT

Description

Boom Pipe | ID: DN125/4.8″ | OAL: 178″ | WT:Super 7GA (0.188″) | Metric CCI | HT Guardian is an induction hardened single-wall pipe with CCI-lined (chrome carbide) weld ends for added pipe end protection. Best matched up with cast manganese elbows, and hardened steel reducers and backend kits.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric CCI, LENGTH [IN/MM] – 178.00″ / 4521mm, HEAT TREATMENT – Heat Treated, WALL THICKNESS [IN/MM] – Super 7GA (0.188″), Wall Type – Single Wall, MODEL – Guardian Boom Pipe, Weight – F.W.C. / foot – 29.5 lbs/ft (13.4 kg/ft), Weight – Empty / foot – 10.1 lbs/ft (4.6 kg/ft), Hardness – Up to 57HRc, Typical Application – Boom,
