CCI-Lined Deck Pipe – Deck Pipe | ID: DN125/4.8″ | OAL: 9.06″ | WT:7.5mm + 3.0mm | Hevi-Duty™

Description

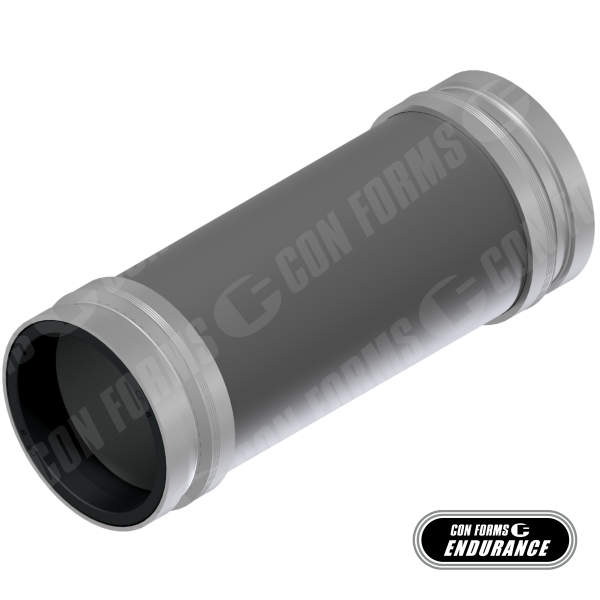

Deck Pipe | ID: DN125/4.8″ | OAL: 9.06″ | WT:7.5mm + 3.0mm | Hevi-Duty™ CCI-Lined Deck Pipes feature a chrome carbide wear resistant liner and a pressure-containing steel shell for the longest life. Best paired with TW325 boom pipe and CCI-lined elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Hevi-Duty™, END STYLE – Hevi-Duty™ CCI, LENGTH [IN/MM] – 9.06″ / 230mm, Wall Thickness – Twin Wall – 7.5mm + 3.0mm, Wall Type – Twin-Wall™ – Standard Weight, MODEL – CCI-Lined Deck Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 85 / 1233, PRESSURE RATING [BAR/PSI] – 100 / 1450, Weight – F.W.C. / foot – 42.2 lbs/ft (19.1 kg/ft), Weight – Empty / foot – 23.8 lbs/ft (10.8 kg/ft), Hardness – 58 to 62 HRc, LINER TYPE – Chrome Carbide Liners, Typical Application – Deck,
