CCI-Lined Deck Pipe – Deck Pipe | ID: DN150/5.75″ | OAL: 47 1/4″ | WT:7.5mm + 3.0mm | ZX Male CCI, Female CCI | HT

Description

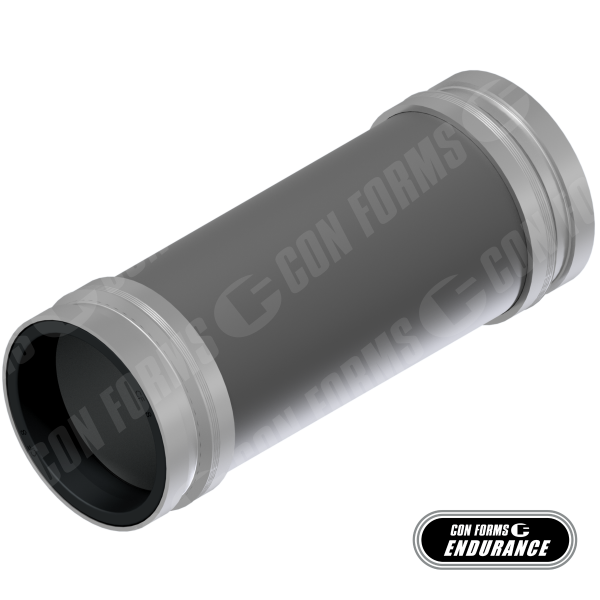

Deck Pipe | ID: DN150/5.75″ | OAL: 47 1/4″ | WT:7.5mm + 3.0mm | ZX Male CCI, Female CCI | HT CCI-Lined Deck Pipes feature a chrome carbide wear resistant liner and a pressure-containing steel shell for the longest life. Best paired with TW325 boom pipe and CCI-lined elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN150/6″, END STYLE – ZX Male CCI / Female CCI, LENGTH [IN/MM] – 47.25″ / 1200mm, HEAT TREATMENT – Heat Treated, Wall Type – Twin-Wall™ – Standard Weight, MODEL – CCI-Lined Deck Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 125 / 1812, Weight – F.W.C. / foot – 65.3 lbs/ft (29.6 kg/ft), Weight – Empty / foot – 38.3 lbs/ft (17.4 kg/ft), Hardness – 58 to 62 HRc, LINER TYPE – Chrome Carbide Liners, Typical Application – Deck,
