Guardian Deck Pipe – Deck Pipe | ID: DN125/4.8″ | OAL: 106″ | WT:6.6mm/.261″ | Metric CCI | HT

$623.55

SKU: B484A600MH Category:

Description

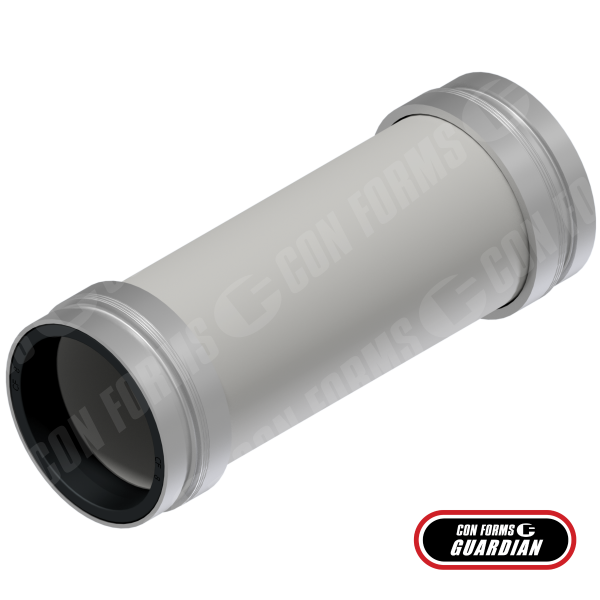

Deck Pipe | ID: DN125/4.8″ | OAL: 106″ | WT:6.6mm/.261″ | Metric CCI | HT Guardian is an induction hardened single-wall pipe with CCI-lined (chrome carbide) weld ends for added pipe end protection. Best matched up with cast manganese elbows, and hardened steel reducers and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric CCI, LENGTH [IN/MM] – 106.00″ / 2692mm, HEAT TREATMENT – Heat Treated, WALL THICKNESS [IN/MM] – 0.261″ / 6.6mm, Wall Type – Single Wall, MODEL – Guardian Deck Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 85 / 1233, Weight – F.W.C. / foot – 33.5 lbs/ft (15.2 kg/ft), Weight – Empty / foot – 14.2 lbs/ft (6.4 kg/ft), Hardness – Up to 57HRc, Typical Application – Deck, CLASSIFICATION – Guardian,

Additional information

Weight 0.000000000 lbs
