Endurance TW5 + 2 Deck Pipe – Deck Pipe | ID: DN125/4.8″ | OAL: 113.85″ | WT:5.2mm + 3.3mm | Metric CCI

Description

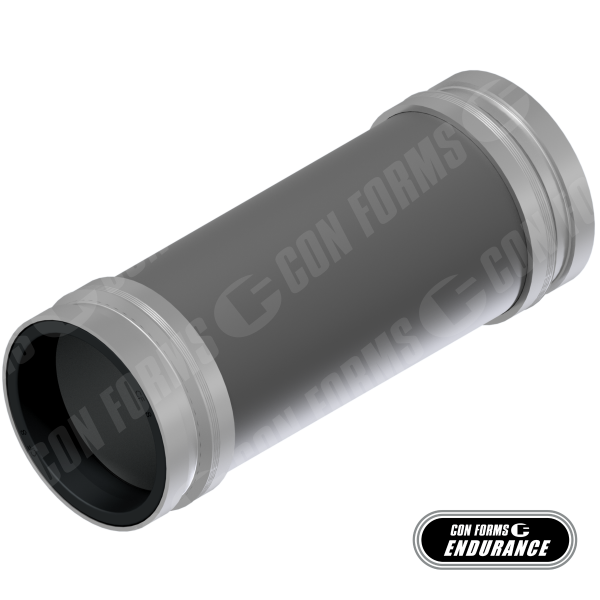

Deck Pipe | ID: DN125/4.8″ | OAL: 113.85″ | WT:5.2mm + 3.3mm | Metric CCI Twin-Wall™ Deck Pipes feature a wear resistant steel pipe liner, a chrome carbide liner inside the ends, and a pressure-containing steel shell. Best paired with twin walled boom pipe, elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric CCI, LENGTH [IN/MM] – 113.85″ / 2892mm, Wall Thickness – Twin Wall – 5.2mm + 3.3mm, Wall Type – Twin-Wall™ – Standard Weight, MODEL – TW 5 + 2 Deck Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 100 / 1450, Weight – F.W.C. / foot – 38.2 lbs/ft (17.4 kg/ft), Hardness – Up to 68HRc, LINER TYPE – Hardened Steel Liner, Typical Application – Deck, CLASSIFICATION – Endurance,
