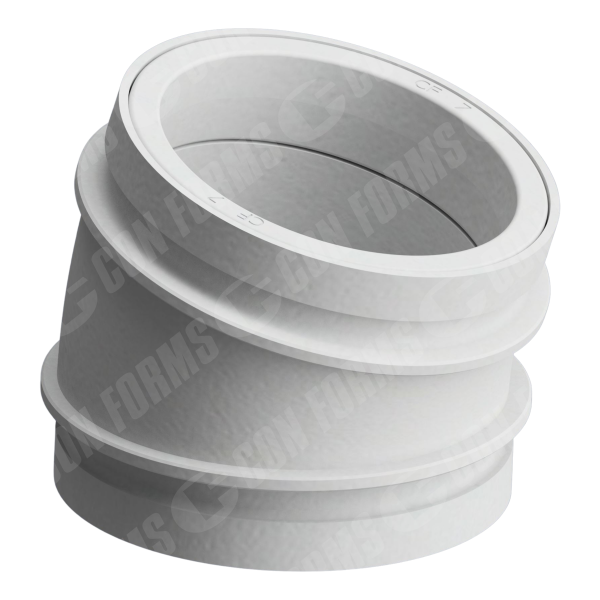

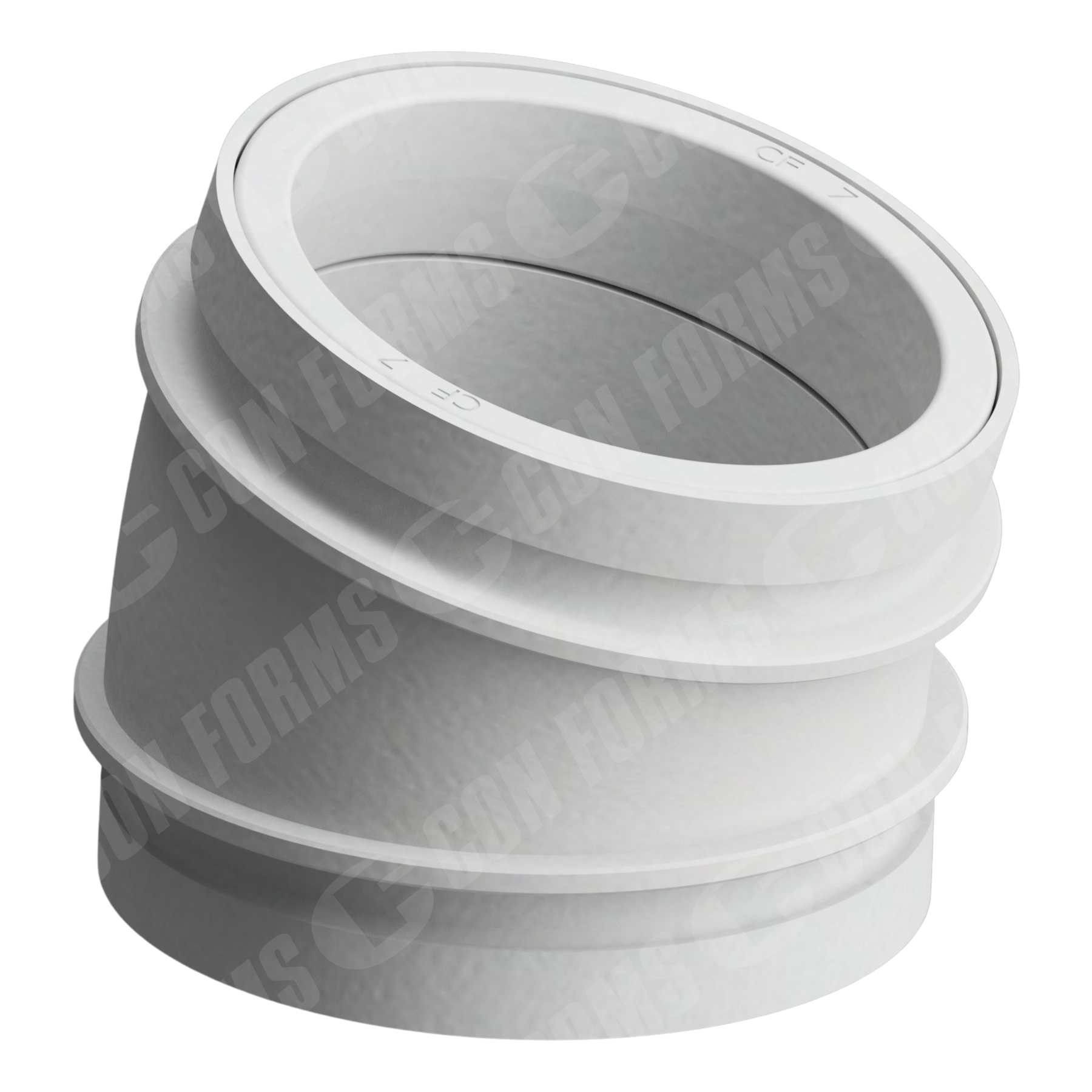

Guardian Elbow/Bend – Elbow/Bend | ID: DN125/4.8″ | BA: 15.00° | Metric CCI | 5.6″ HGT | HT

$566.08

SKU: 127M09564H Category:

Description

Elbow/Bend | ID: DN125/4.8″ | BA: 15.00° | Metric CCI | 5.6″ HGT | HT Cast Steel Boom Elbows pair well with single-wall pipes and reducers for general purpose use.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, ANGLE [DEGREES] – 15°, END STYLE – Metric CCI, HEAT TREATMENT – Heat Treated, WALL THICKNESS [IN/MM] – Biased toward high wear areas, Height (face to highest point) – 5.60″ / 142mm, MODEL – Cast Steel Elbow, Pressure – Meets 85 bar working / 170 bar burst – Yes, Hardness – 40 to 45 HRc, Typical Application – Boom / Deck, CLASSIFICATION – Guardian,

Additional information

Weight 10.000000000 lbs
