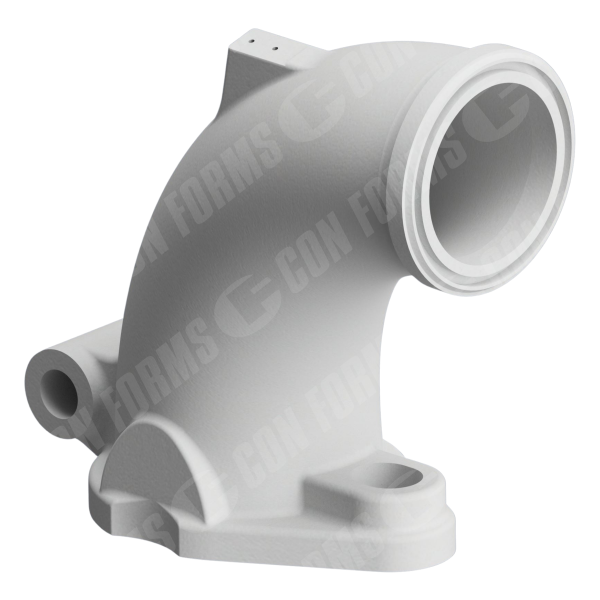

Guardian Hinged Valve Outlet (Swingout Elbow) – Hinged Valve Outlet | DN150/6″ – DN180/7″ | Schwing Male | BA: 90.00° | 369x313mm | 12° tilt

Description

Hinged Valve Outlet | DN150/6″ – DN180/7″ | Schwing Male | BA: 90.00° | 369x313mm | 12° tilt Backend components are designed for the highest pressure applications in the pumping system, along with features that result in a long product life.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN150/6″, ANGLE [DEGREES] – 90°, END STYLE – Schwing Male, Center-to-Face – Backend Outlet Elbow – 369 x 313mm, WALL THICKNESS [IN/MM] – Biased toward high wear areas, MODEL – Cast Steel Elbow, PRESSURE RATING [BAR/PSI] – 130 / 1885, Tilt – 12° Tilt, CLASSIFICATION – Guardian,
