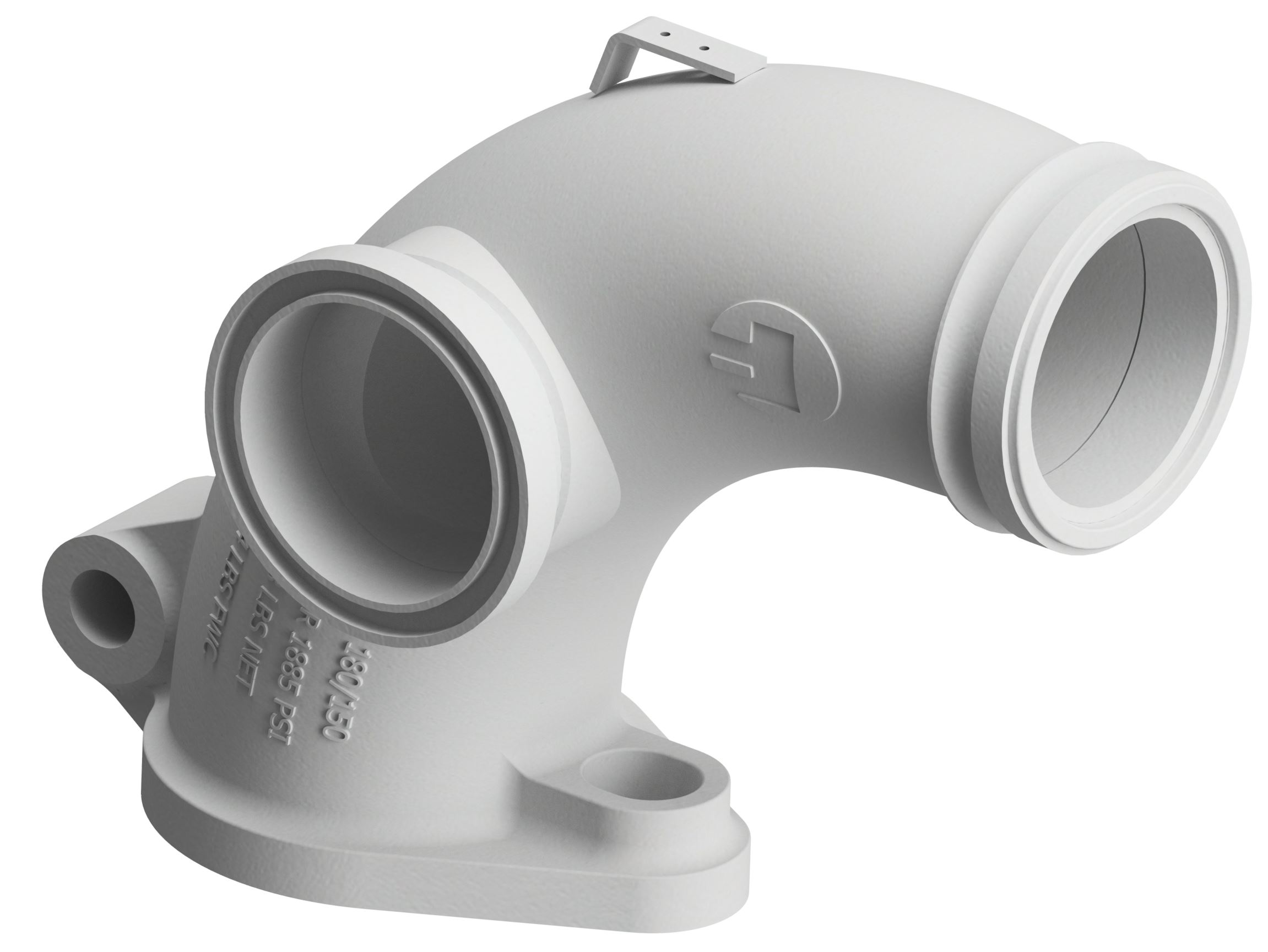

Hinged Valve Outlet (Swingout Elbow) – Hinged Valve Outlet | DN150/6″ – DN180/7″ | Euro Male | BA: 90 | 369x435mm | 11.6″ CLR || w/ 6″ Schwing female port

Description

Hinged Valve Outlet | DN150/6″ – DN180/7″ | Euro Male | BA: 90 | 369x435mm | 11.6″ CLR || w/ 6″ Schwing female port Backend components are designed for the highest pressure applications in the pumping system, along with features that result in a long product life.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN150/6″, ANGLE [DEGREES] – 90°, Inlet End Style – Euro Female, Outlet End Style – Euro Male, Center-to-Face – Backend Outlet Elbow – 369 x 435mm, WALL THICKNESS [IN/MM] – Biased toward high wear areas, MODEL – Cast Steel Elbow, PRESSURE RATING [BAR/PSI] – 130 / 1885, Special Description – w/ 6″ Schwing female port,
