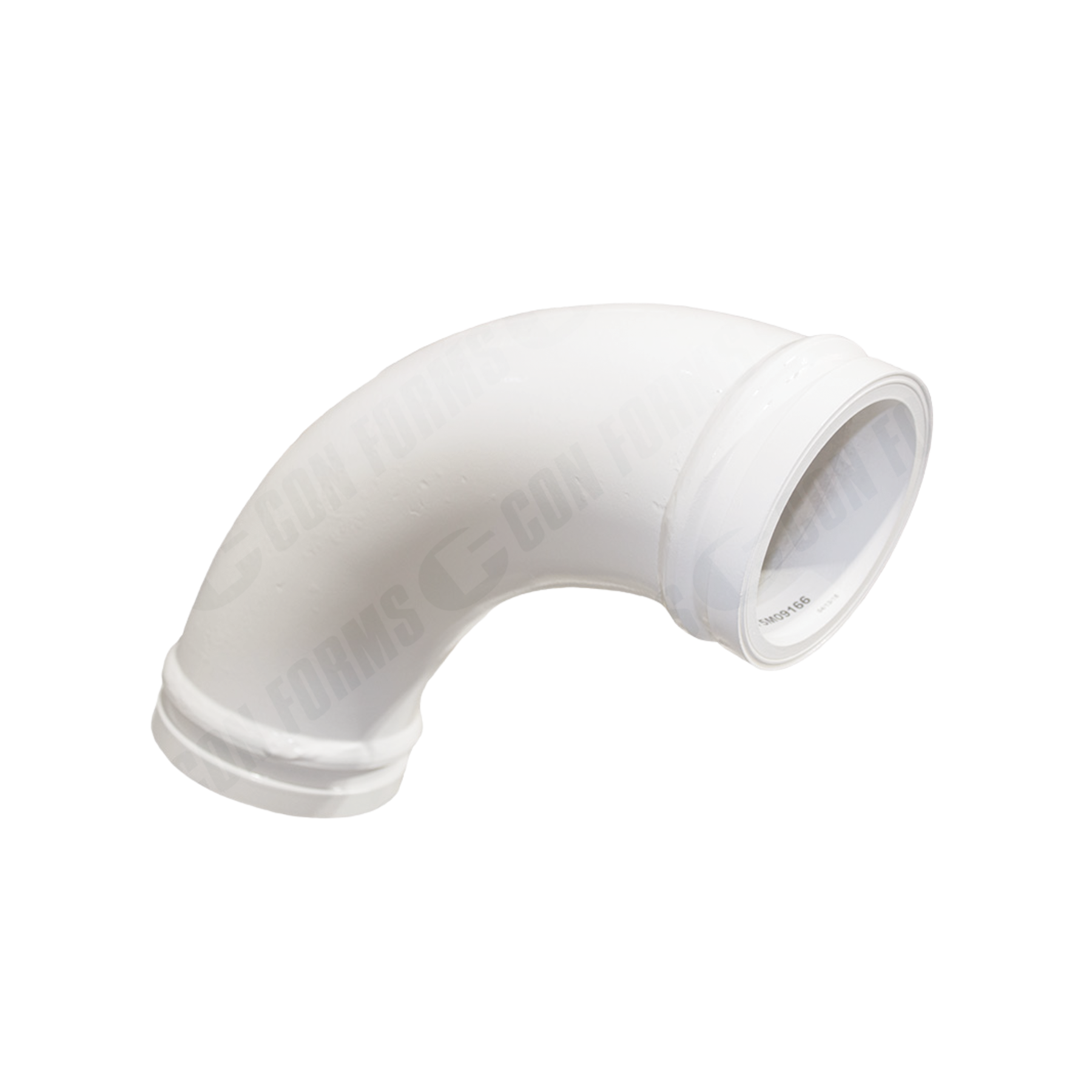

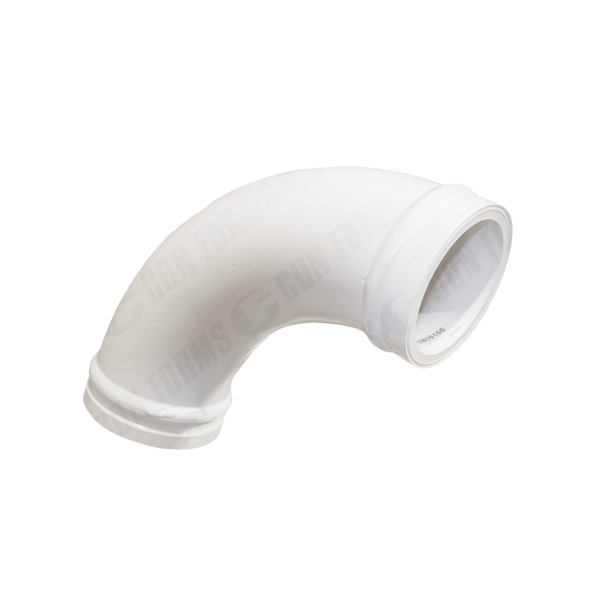

Elbow/Bend – Elbow/Bend | ID: DN150/5.75″ | BA: 90 | Sermac CCI M/F | Tan: 8.8″ / 8.8″

Description

Elbow/Bend | ID: DN150/5.75″ | BA: 90 | Sermac CCI M/F | Tan: 8.8″ / 8.8″ Cast Steel Boom Elbows pair well with single-wall pipes and reducers for general purpose use.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN150/6″, ANGLE [DEGREES] – 90°, END STYLE – Sermac Male CCI / Female CCI, Center-to-Tangent-Face (90° Elbow) – 2 Tangents – 16.73″ / 16.73″, Tangent Length (incl. Weld End) – 2 Tangents – 8.80″/8.80″ (224mm/224mm), WALL THICKNESS [IN/MM] – Biased toward high wear areas, MODEL – Cast Steel Elbow, Pressure – Meets 85 bar working / 170 bar burst – Yes,
