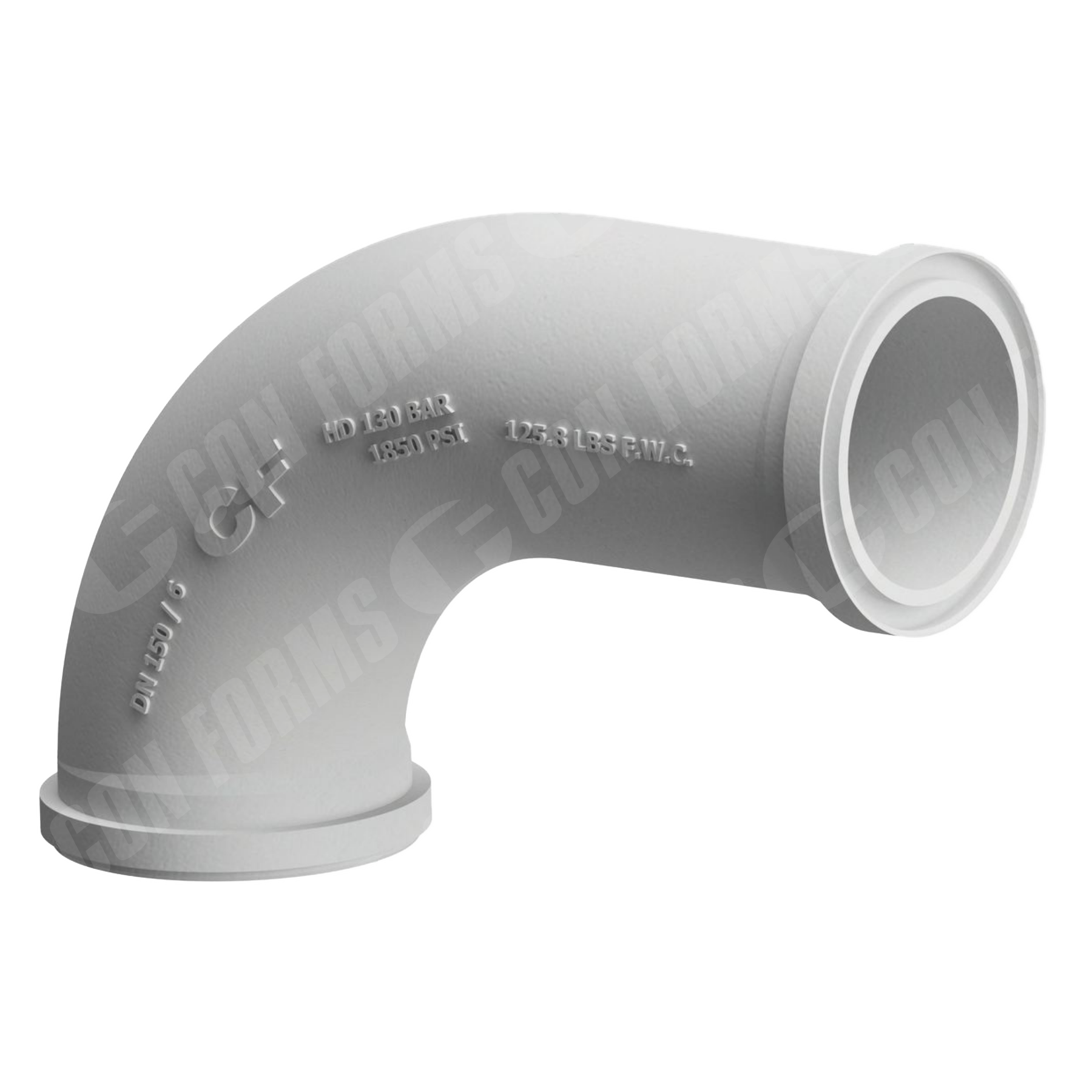

Guardian Cast Manganese Backend Elbow – Cast Manganese Deck Elbow | ID: DN150/6″ | BA: 90.00° | Schwing M/F | Tan: 8.3″ | 246 x 430 | HT

Description

Cast Manganese Deck Elbow | ID: DN150/6″ | BA: 90.00° | Schwing M/F | Tan: 8.3″ | 246 x 430 | HT Cast Manganese elbows are heat treated for longer life. Pair with hardened single-wall pipe and reducers for best results.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN150/6″, ANGLE [DEGREES] – 90°, END STYLE – Schwing Male / Female, HEAT TREATMENT – Heat Treated, Center-to-Tangent-Face (90° Elbow) – 246 x 430, Tangent Length (incl. Weld End) – 8.30″ / 211mm, WALL THICKNESS [IN/MM] – Biased toward high wear areas, MODEL – Cast Manganese Boom Elbow, Pressure – Meets 85 bar working / 170 bar burst – Yes, Typical Application – Deck, CLASSIFICATION – Guardian,
