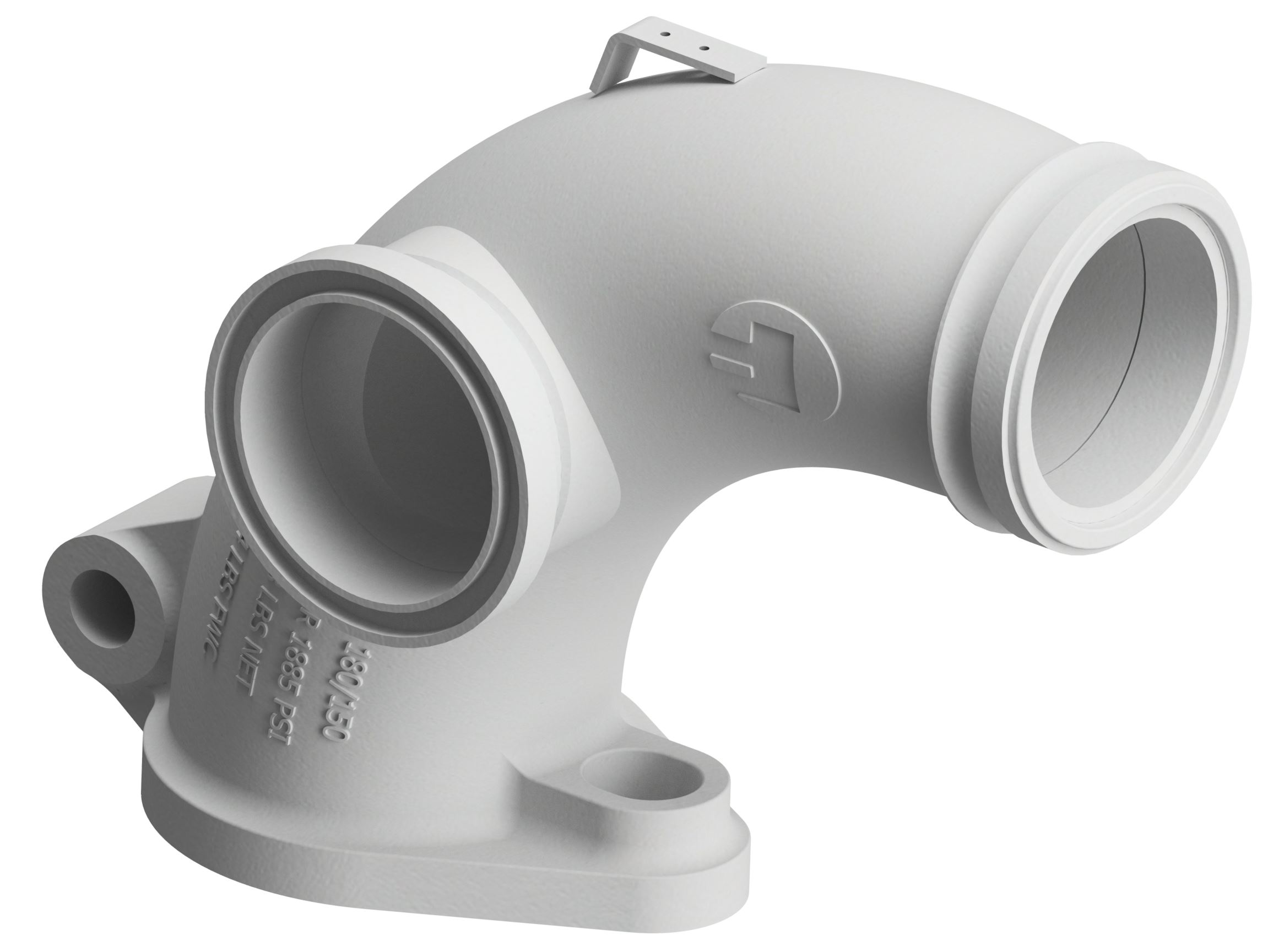

Endurance Hinged Valve Outlet (Swingout Elbow) – Hinged Valve Outlet | DN150/6″ – DN180/7″ | ZX Female CCI | BA: 90.00° | 300x545mm | w/ 5″ ZX Female Port

$5,456.01

SKU: 265-13646 Category:

Description

Hinged Valve Outlet | DN150/6″ – DN180/7″ | ZX Female CCI | BA: 90.00° | 300x545mm | w/ 5″ ZX Female Port Backend components are designed for the highest pressure applications in the pumping system, along with features that result in a long product life.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN150/6″, ANGLE [DEGREES] – 90°, END STYLE – Putz 6″ HP Female CCI, Center-to-Face – Backend Outlet Elbow – 300 x 545mm, Wall Thickness – Twin Wall – Biased toward high wear areas, MODEL – CCI-Lined Elbow, PRESSURE RATING [BAR/PSI] – 130 / 1885, Hardness – 600 to 650 Brinell, LINER TYPE – Chrome Carbide Liners, Special Description – w/ 5″ ZX Female port, CLASSIFICATION – Endurance,

Additional information

Weight 199.000000000 lbs
