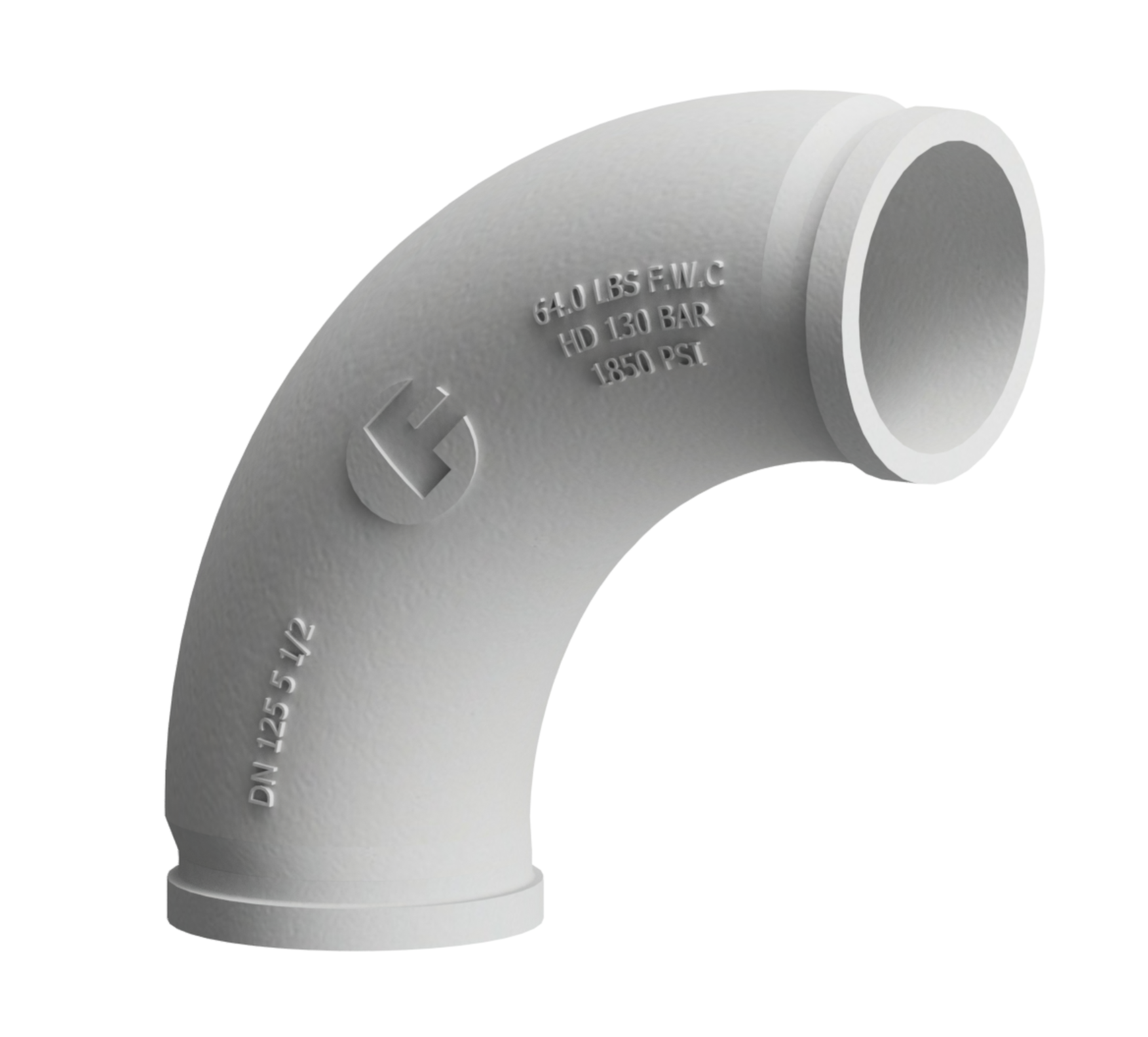

Guardian Cast Manganese Boom Elbow – Cast Manganese Boom Elbow | ID: DN125/4.8″” | BA: 90.00° | Metric | 275 x 275mm | Impact | HT

$319.07

SKU: 127P17660 Category:

Description

Cast Manganese Boom Elbow | ID: DN125/4.8″” | BA: 90.00° | Metric | 275 x 275mm | Impact | HT Cast Manganese elbows are heat treated for longer life. Pair with hardened single-wall pipe and reducers for best results.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, ANGLE [DEGREES] – 90°, END STYLE – Metric, HEAT TREATMENT – Heat Treated, Center-to-Face – 90° Elbow – 275 x 275mm, WALL THICKNESS [IN/MM] – Biased toward high wear areas, MODEL – Cast Manganese Boom Elbow, Pressure – Meets 85 bar working / 170 bar burst – Yes, Typical Application – Boom / Deck, Impact Elbow – Yes, CLASSIFICATION – Guardian,

Additional information

Weight 42.000000000 lbs
