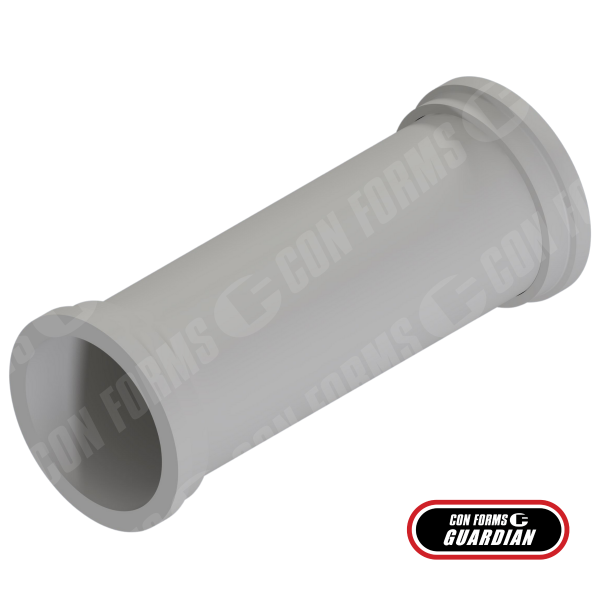

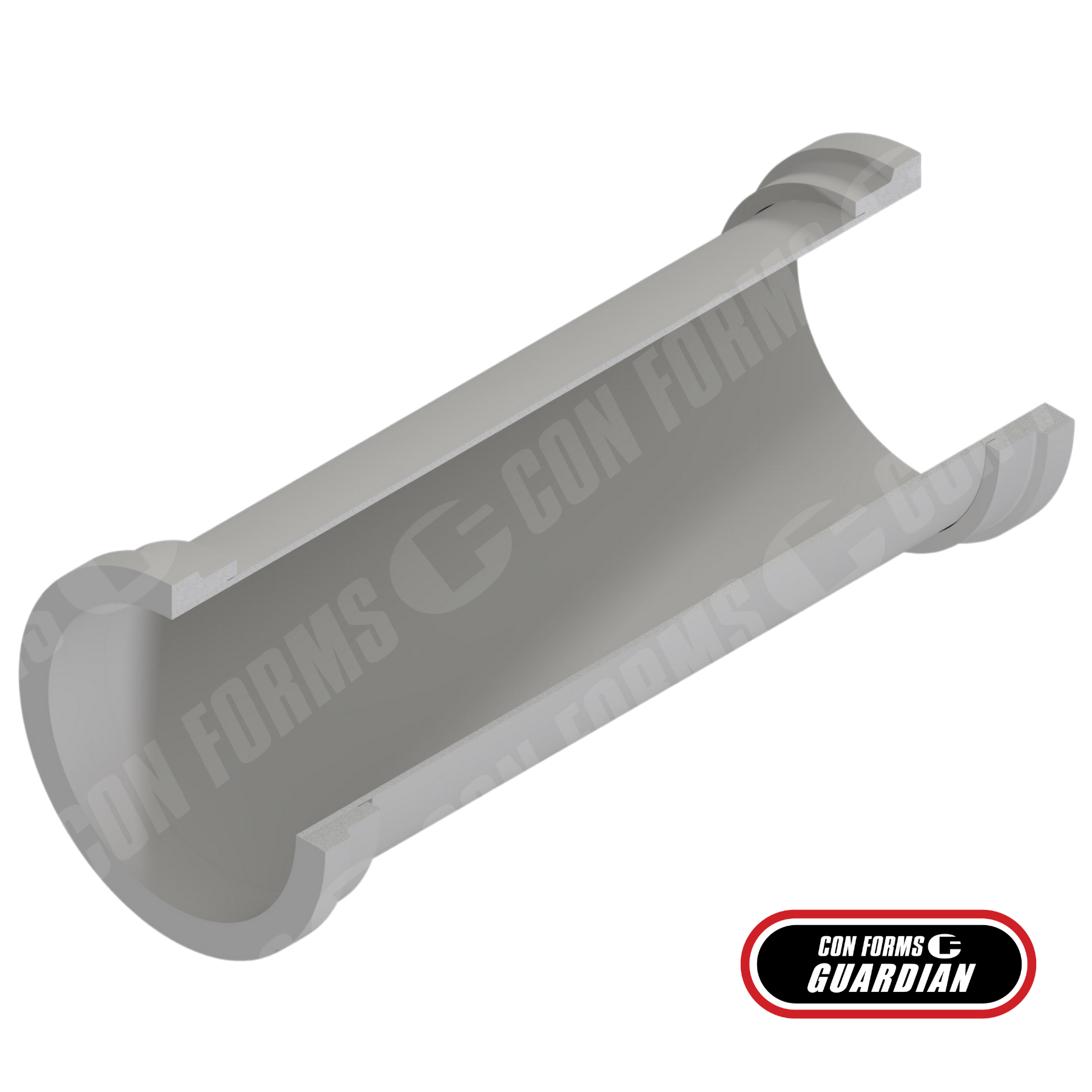

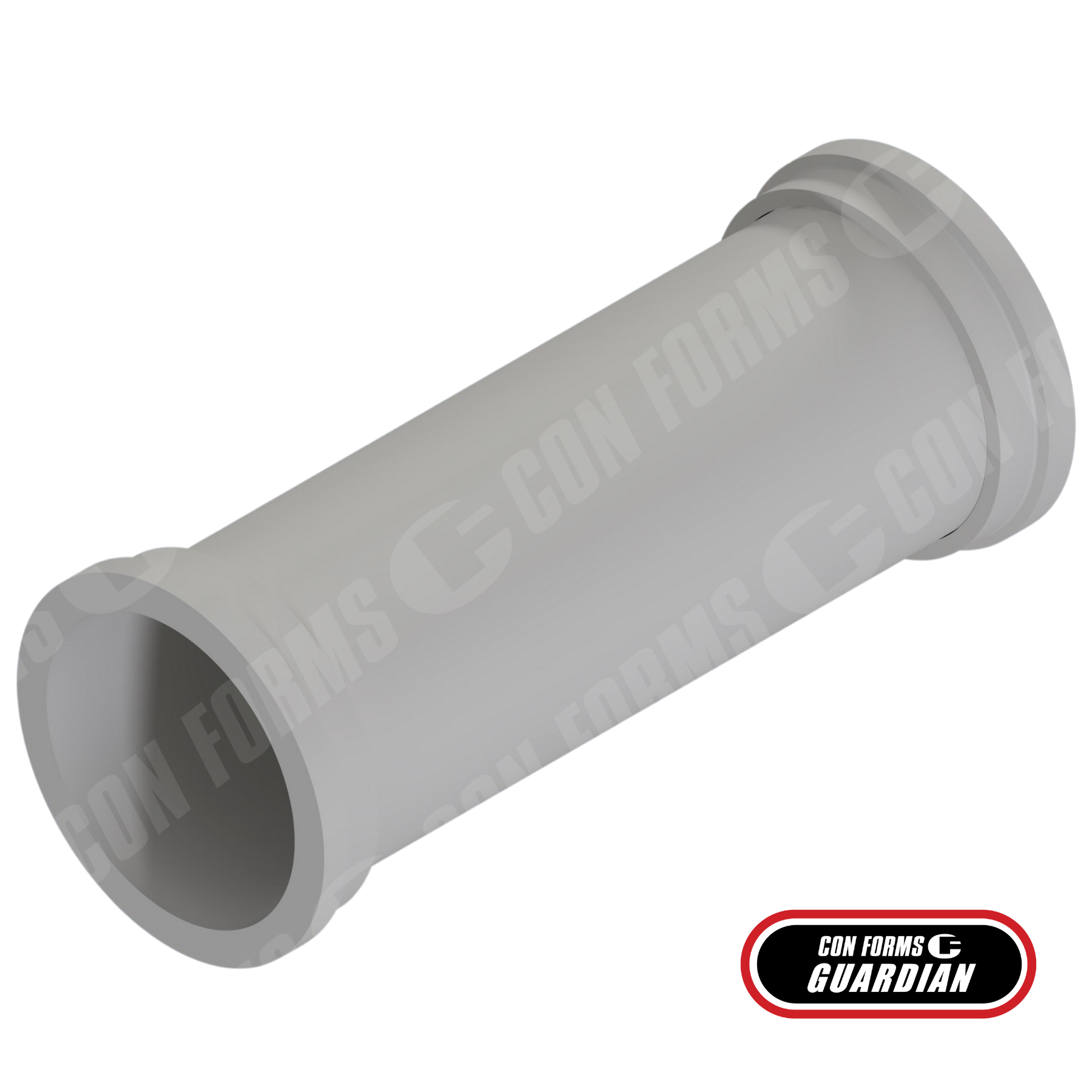

Laydown/Placing Pipe – Laydown/PlaLaydown/Placing Pipe | ID: DN100/4.0″ | WT: 11 GA (0.120″) | OAL: 30ft | End: Hevi-Duty™

Description

Laydown/PlaLaydown/Placing Pipe | ID: DN100/4.0″ | WT: 11 GA (0.120″) | OAL: 30ft | End: Hevi-Duty™ Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
Pressure and wear indicator tools are available for professional system monitoring and maintenance programs.
INSIDE DIAMETER [IN/MM] – DN100/4″, END STYLE – Hevi-Duty™, LENGTH [IN/MM] – 360.00″ / 9144mm, WALL THICKNESS [IN/MM] – 11GA (0.120″), Wall Type – Single Wall, MODEL – Laydown Line, PRESSURE RATING [BAR/PSI] – 100 / 1450, Weight – F.W.C. / foot – 18.4 lbs/ft (8.3 kg/ft), Weight – Empty / foot – 5.3 lbs/ft (2.4 kg/ft), Typical Application – Laydown, CLASSIFICATION – Guardian,
