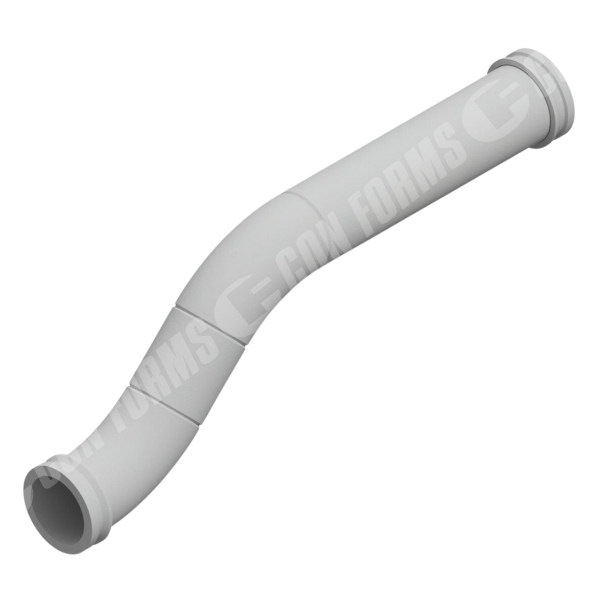

Offset/S Elbow/Bend – Offset/S Elbow/Bend | ID: DN100/4″ | WT: 0.25 | BA: 45 x 2 | Tan 17.8 | 36.1″L x 9″O

$1,222.84

SKU: 122-21918 Category:

Description

Offset/S Elbow/Bend | ID: DN100/4″ | WT: 0.25 | BA: 45 x 2 | Tan 17.8 | 36.1″L x 9″O New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN100/4″, ANGLE [DEGREES] – 45° x 2, END STYLE – Hevi-Duty™, Tangent Length (incl. Weld End) – 17.80″ / 452mm, WALL THICKNESS [IN/MM] – 0.250″ / 6.35mm, Offset / S-bend – Length x Offset – 36.10″L x 9.00″O,

Additional information

Weight 57.000000000 lbs
