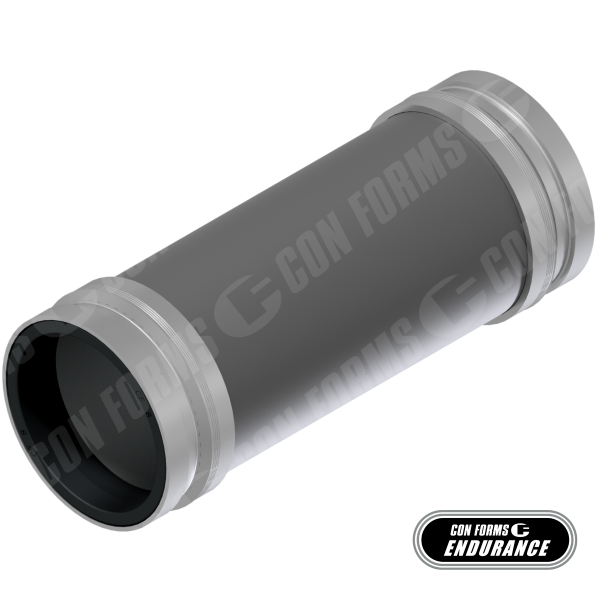

CCI-Lined Deck Pipe – Deck Pipe | ID: DN150/5.75″ | OAL: 49.21″ | WT:7.5mm + 3.0mm | Euro Male CCI / Euro Female CCI

Description

Deck Pipe | ID: DN150/5.75″ | OAL: 49.21″ | WT:7.5mm + 3.0mm | Euro Male CCI / Euro Female CCI CCI-Lined Deck Pipes feature a chrome carbide wear resistant liner and a pressure-containing steel shell for the longest life. Best paired with TW325 boom pipe and CCI-lined elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN150/6″, END STYLE – Euro Male CCI / Euro Female CCI, LENGTH [IN/MM] – 49.21″ / 1250mm, Wall Thickness – Twin Wall – 7.5mm + 3.0mm, Wall Type – Twin-Wall™ – Standard Weight, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 115 / 1668, Weight – F.W.C. / foot – 65.3 lbs/ft (29.6 kg/ft), Weight – Empty / foot – 38.3 lbs/ft (17.4 kg/ft), Hardness – 600 to 650 Brinell, LINER TYPE – Chrome Carbide Liners, Typical Application – Deck,
