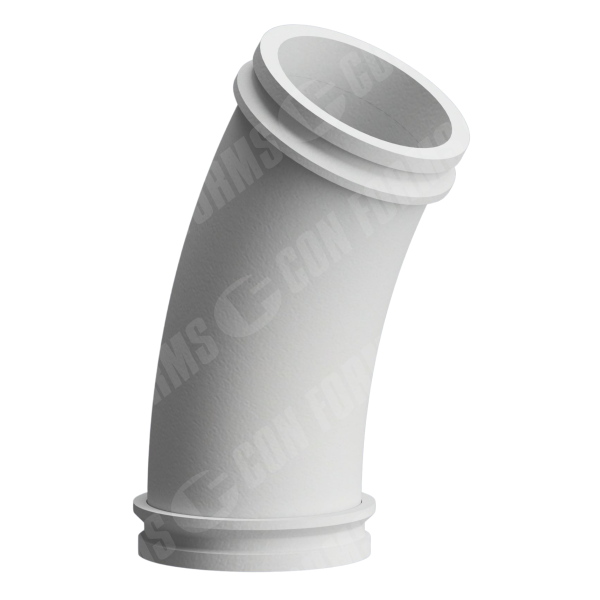

Placing Elbow/Bend – Placing Elbow/Bend | ID: 2″ | WT: 9GA (0.156) | BA: 45 | CLR: 16 | HD | 14.8″ HGT

Description

Placing Elbow/Bend | ID: 2″ | WT: 9GA (0.156) | BA: 45 | CLR: 16 | HD | 14.8″ HGT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – 2.00″ / 51mm, ANGLE [DEGREES] – 45°, END STYLE – Hevi-Duty™, Centerline Radius (CLR) – 16.00″, WALL THICKNESS [IN/MM] – 9GA (0.156″), Height (face to highest point) – 14.80″ / 376mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
