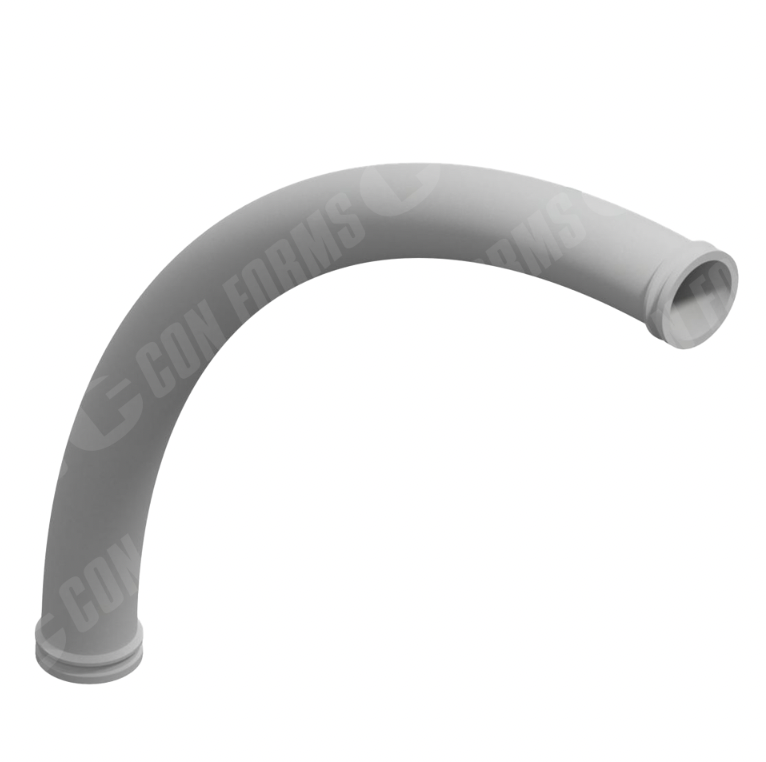

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN127/5″ | WT: 0.25 | BA: 11 | CLR: 24 | HD | 7.8″ HGT | HT

Description

Placing Elbow/Bend | ID: DN127/5″ | WT: 0.25 | BA: 11 | CLR: 24 | HD | 7.8″ HGT | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN127/5″, ANGLE [DEGREES] – 11°, END STYLE – Hevi-Duty™, HEAT TREATMENT – Heat Treated, Centerline Radius (CLR) – 24.00″, WALL THICKNESS [IN/MM] – 0.250″ / 6.35mm, Height (face to highest point) – 7.80″ / 198mm, PRESSURE RATING [BAR/PSI] – 215 / 3117,
