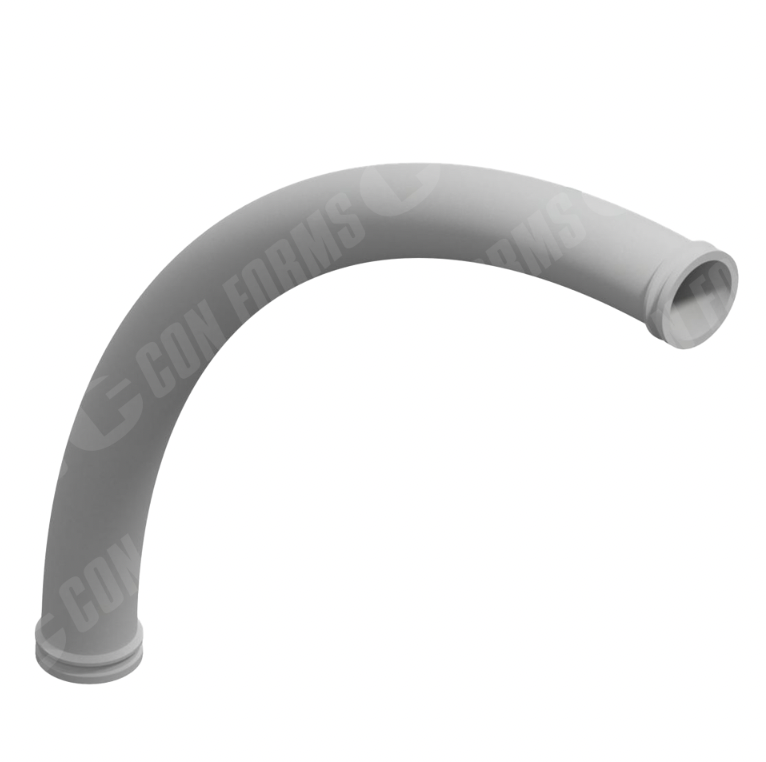

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN127/5″ | BA: 22.5 | CLR: 22.5 | HD | 7.7″ HGT | HT

Description

Placing Elbow/Bend | ID: DN127/5″ | BA: 22.5 | CLR: 22.5 | HD | 7.7″ HGT | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN127/5″, ANGLE [DEGREES] – 22.5°, END STYLE – Hevi-Duty™, HEAT TREATMENT – Heat Treated, Centerline Radius (CLR) – 22.50″, Height (face to highest point) – 7.70″ / 196mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
