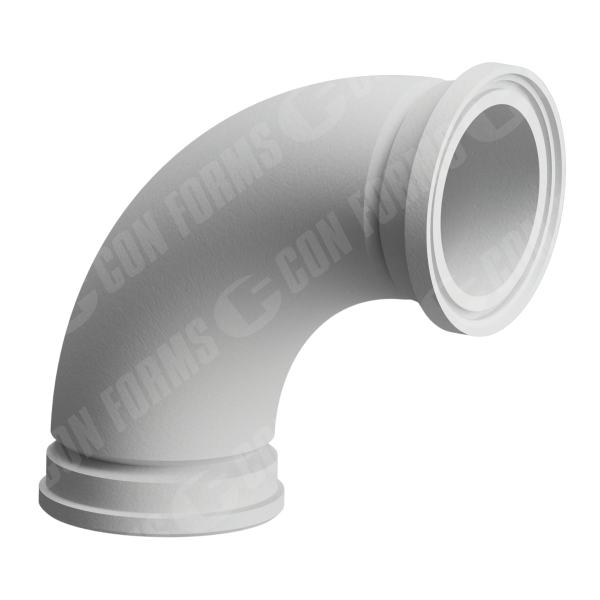

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN127/5″ | WT: 0.25 | BA: 22.5 | CLR: 48 | HD | 22″ | HT

$722.84

SKU: PB502248DH Categories: ,

Description

Placing Elbow/Bend | ID: DN127/5″ | WT: 0.25 | BA: 22.5 | CLR: 48 | HD | 22″ | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN127/5″, ANGLE [DEGREES] – 22.5°, END STYLE – Hevi-Duty™, HEAT TREATMENT – Heat Treated, Centerline Radius (CLR) – 48.00″, WALL THICKNESS [IN/MM] – 0.250″ / 6.35mm, Height (face to highest point) – 22.00″ / 559mm, PRESSURE RATING [BAR/PSI] – 225 / 3262,

Additional information

Weight 25.000000000 lbs
