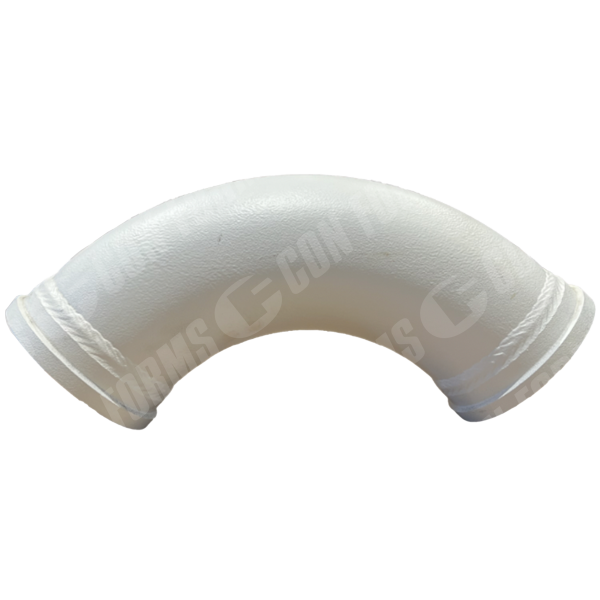

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN150/6″ | WT: 0.312 | BA: 90 | CLR: 9 | HD | 292 x 292mm

Description

Placing Elbow/Bend | ID: DN150/6″ | WT: 0.312 | BA: 90 | CLR: 9 | HD | 292 x 292mm Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN150/6″, ANGLE [DEGREES] – 90°, END STYLE – Hevi-Duty™, Center-to-Face – 90° Elbow – 292 x 292mm, Centerline Radius (CLR) – 9.00″, WALL THICKNESS [IN/MM] – 0.312″ / 7.9mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
