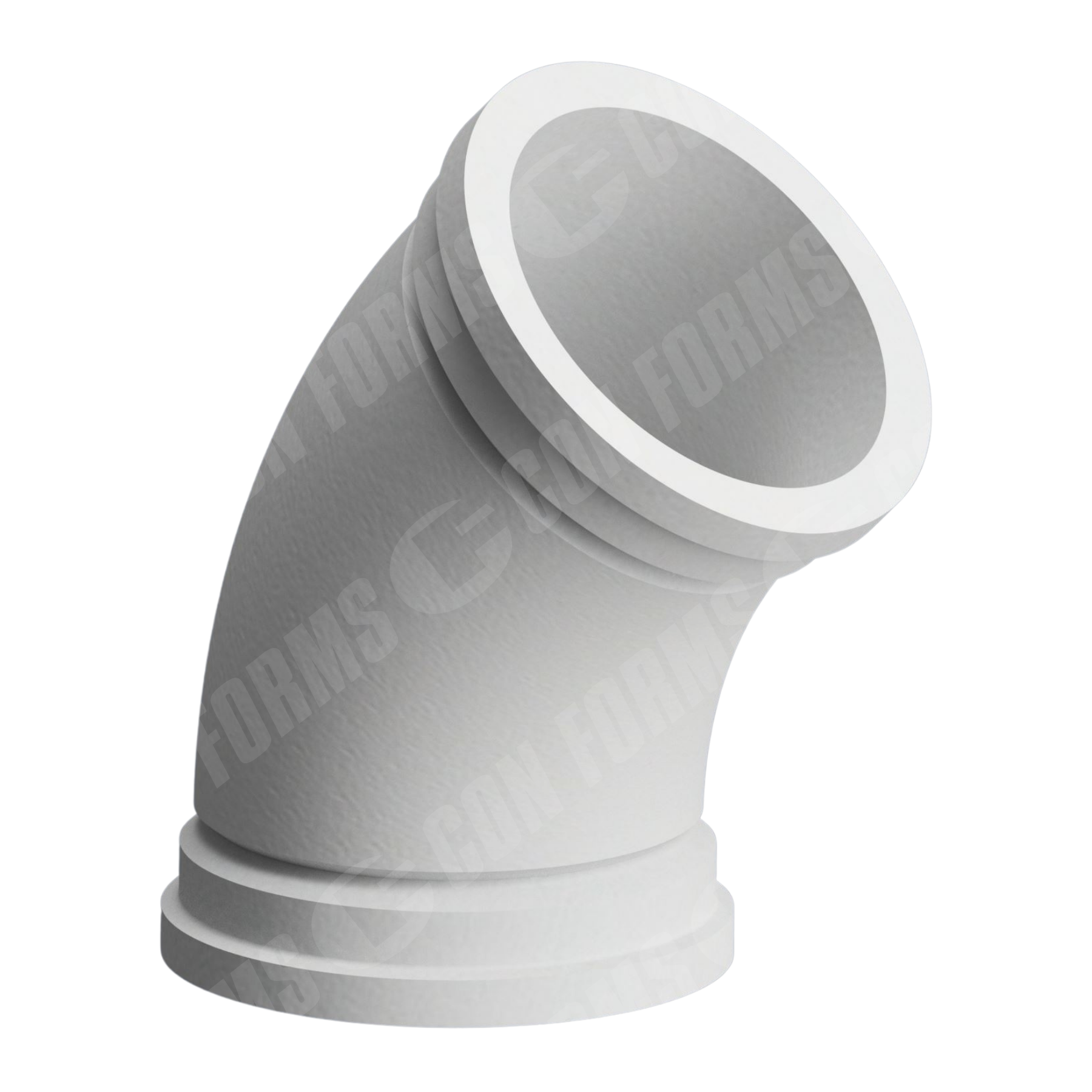

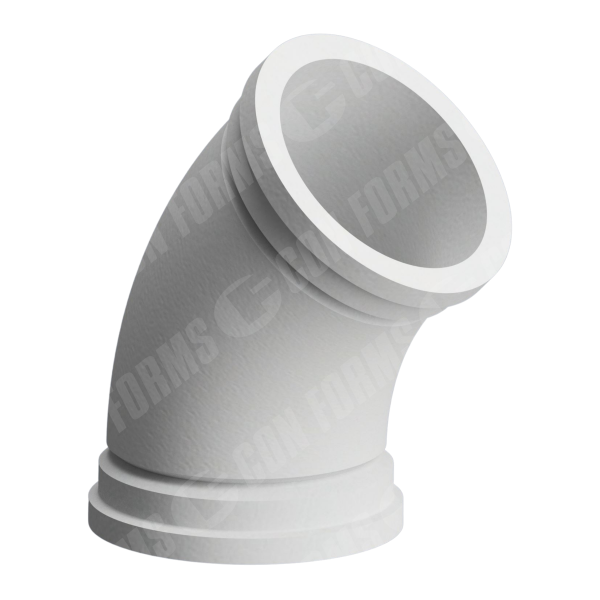

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN127/5″ | BA: 45 | CLR: 9.5 | CHAMF | 11.5″ HGT

Description

Placing Elbow/Bend | ID: DN127/5″ | BA: 45 | CLR: 9.5 | CHAMF | 11.5″ HGT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN127/5″, ANGLE [DEGREES] – 45°, END STYLE – Hevi-Duty™, Centerline Radius (CLR) – 9.50″, Height (face to highest point) – 11.50″ / 292mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
