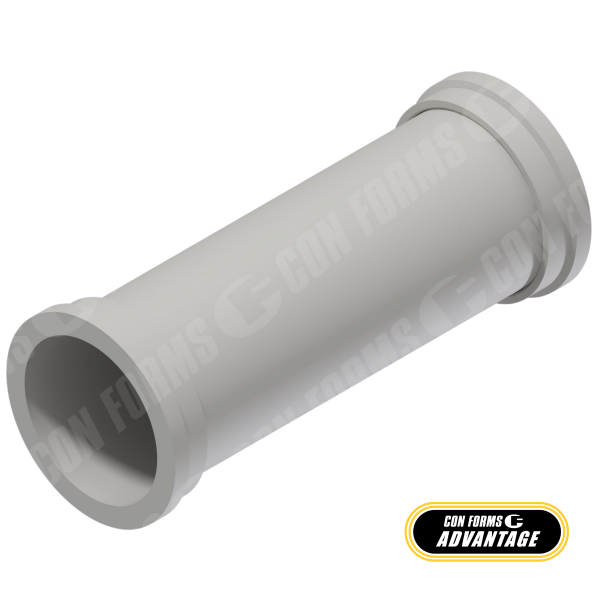

Laydown/Placing Pipe – Laydown/Placing Pipe | ID: DN127/5″ | WT: 0.25 | OAL: 7ft | End: Hevi-Duty™

$409.33

SKU: T5025A07D Category:

Description

Laydown/Placing Pipe | ID: DN127/5″ | WT: 0.25 | OAL: 7ft | End: Hevi-Duty™ Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
Pressure and wear indicator tools are available for professional system monitoring and maintenance programs.
INSIDE DIAMETER [IN/MM] – DN127/5″, END STYLE – Hevi-Duty™, LENGTH [IN/MM] – 84.00″ / 2134mm, WALL THICKNESS [IN/MM] – 0.250″ / 6.35mm, Wall Type – Single Wall, MODEL – Laydown Line, PRESSURE RATING [BAR/PSI] – 190 / 2775, Typical Application – Laydown, CLASSIFICATION – Advantage,

Additional information

Weight 103.700000000 lbs
