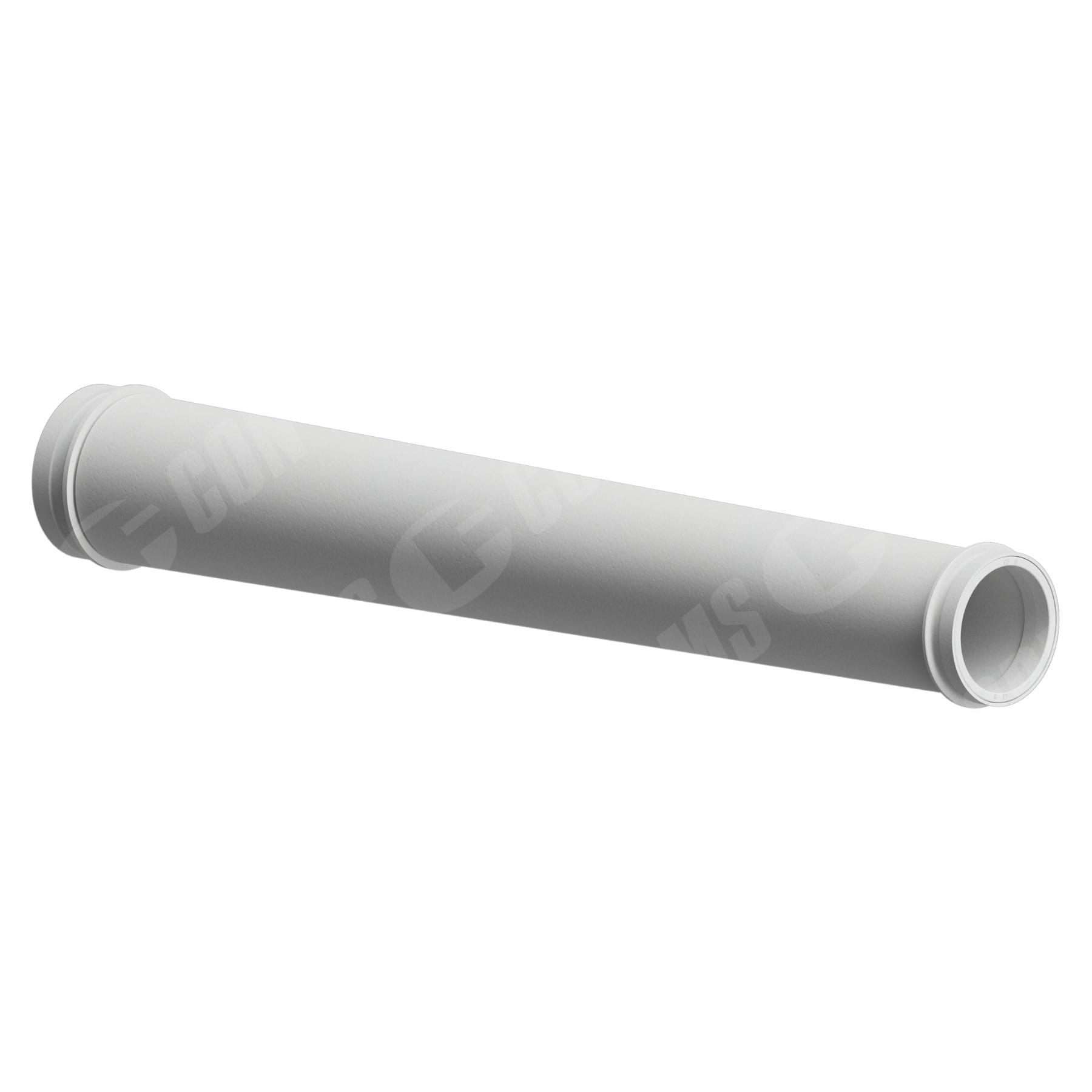

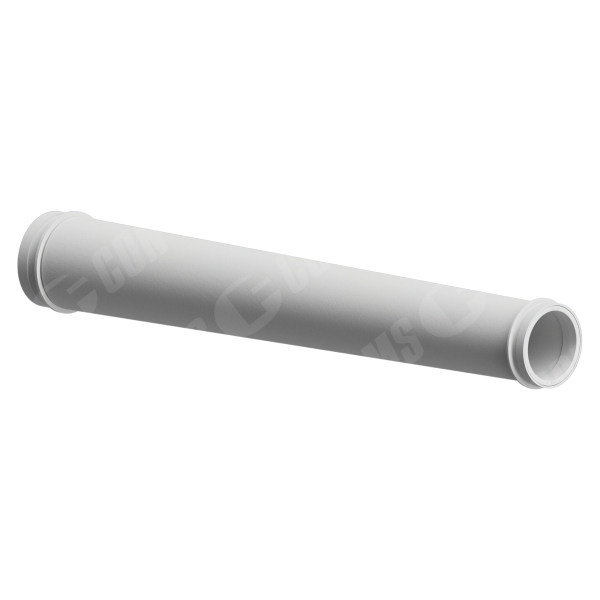

CCI-Lined Reducer – Reducer | CCI-Lined | ID: DN125/4.8″ Metric CCI – DN117/4.6″ Metric CCI | OAL: 118.11″ / 3000mm

$1,884.37

SKU: 120-16515 Category:

Description

Reducer | CCI-Lined | ID: DN125/4.8″ Metric CCI – DN117/4.6″ Metric CCI | OAL: 118.11″ / 3000mm The chrome carbide liner inside both the shell and weld ends protects against excessive wear, providing superior life. Best paired with Ultra Plus and twin wall pipes, and CCI-lined elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INLET DIAMETER [IN] – DN125/4.8″, OUTLET DIAMETER [IN] – DN117/4.6″, Inlet End Style – Metric CCI, Outlet End Style – Metric CCI, LENGTH [IN/MM] – 118.12″ / 3000mm, MODEL – CCI-Lined Reducer, Pressure – Meets 85 bar working / 170 bar burst – Yes, Hardness – 600 to 650 Brinell, REDUCER TYPE – Chrome Carbide Liner, Typical Application – Boom / Deck,

Additional information

Weight 119.000000000 lbs
