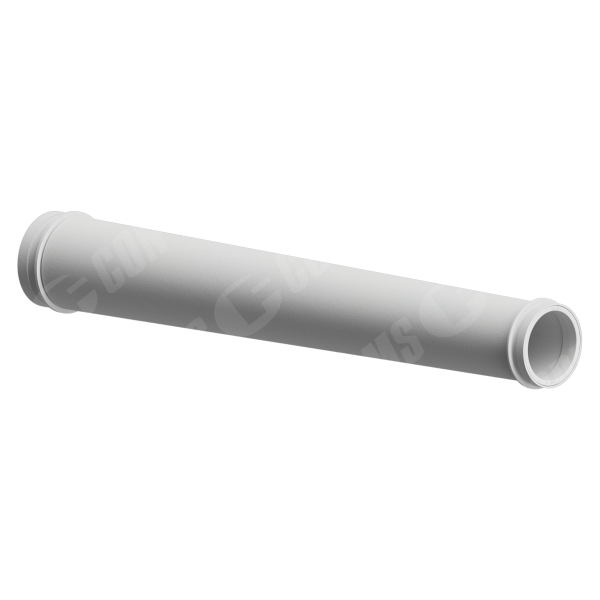

Single Wall Boom Reducer – Reducer | Single Wall | ID: DN150/6″ Euro Female – DN125/4.8″ Metric CCI | OAL: 63″ / 1600mm | w/ Port | HT

Description

Reducer | Single Wall | ID: DN150/6″ Euro Female – DN125/4.8″ Metric CCI | OAL: 63″ / 1600mm | w/ Port | HT Single wall reducers are induction hardened and the outlet weld end has a chrome carbide liner for long lasting wear resistence. Best paired with single wall pipes and cast elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INLET DIAMETER [IN] – DN150/6″, OUTLET DIAMETER [IN] – DN125/4.8″, Inlet End Style – Euro Female, Outlet End Style – Metric CCI, LENGTH [IN/MM] – 63.00″ / 1600mm, HEAT TREATMENT – Heat Treated, MODEL – Single Wall, Pressure – Meets 85 bar working / 170 bar burst – Yes, Hardness – Up to 50HRc, REDUCER TYPE – Hardened Steel, Typical Application – Deck, Special Description – w/ 5″ Metric port,
