Single Wall Boom Reducer – Reducer | Single Wall | ID: DN180/7″ Schwing Female CCI – DN150/5.75″ Metric | OAL: 61.81″ / 1570mm | HT

Description

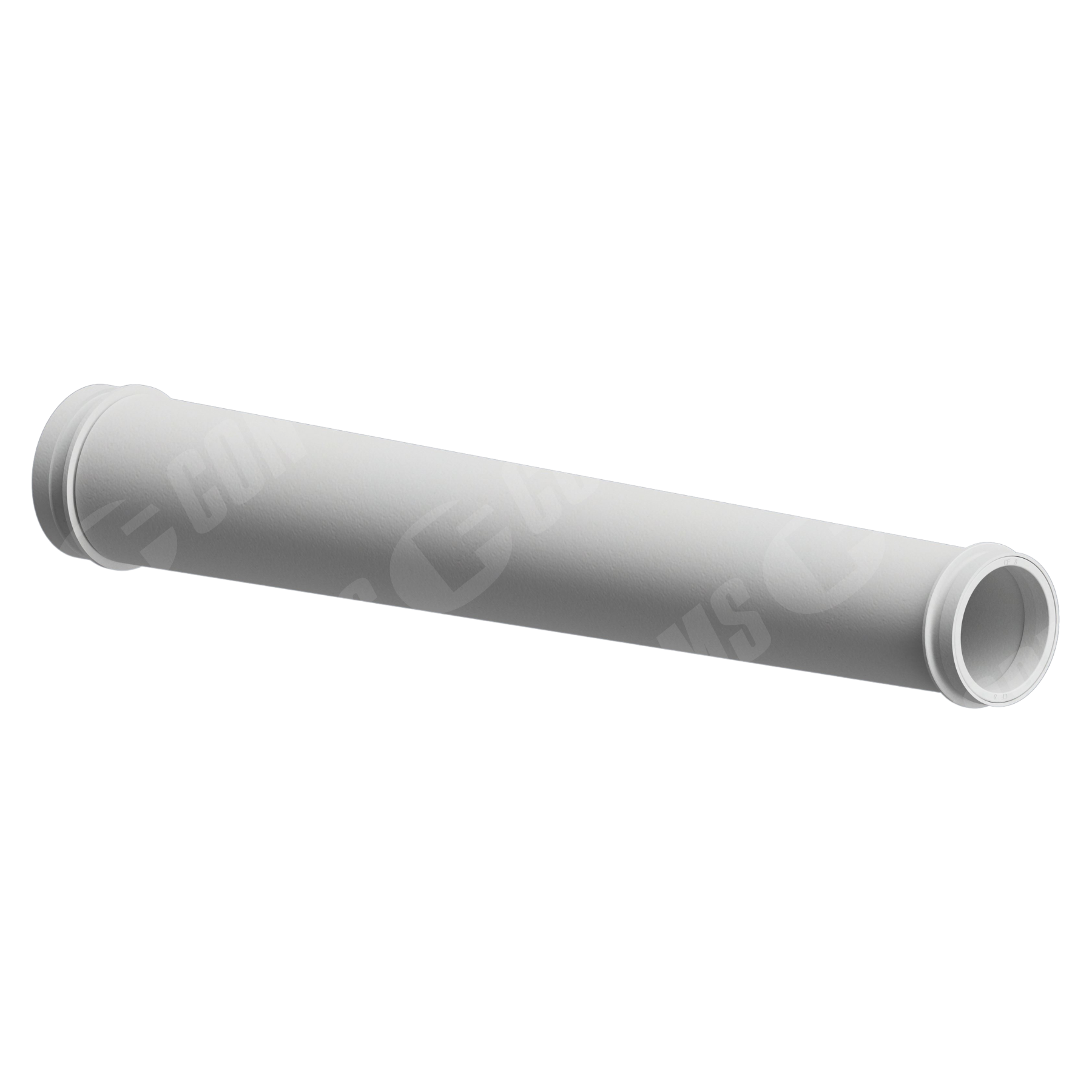

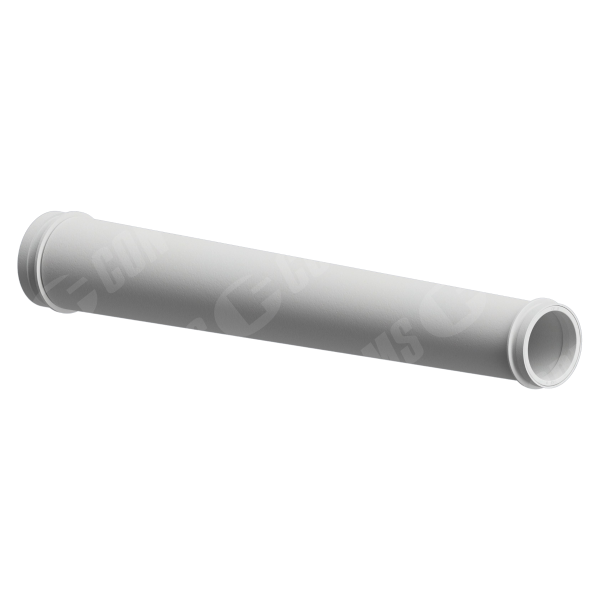

Reducer | Single Wall | ID: DN180/7″ Schwing Female CCI – DN150/5.75″ Metric | OAL: 61.81″ / 1570mm | HT This single wall reducer is induction hardened and the weld ends have a hardened steel liner for long lasting wear resistence. Best paired with single wall pipes and cast elbows and backend kits.
New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN150/5.75″, Inlet End Style – Schwing Female CCI, Outlet End Style – Metric, LENGTH [IN/MM] – 61.81″ / 1570mm, HEAT TREATMENT – Heat Treated, MODEL – Single Wall, Pressure – Meets 85 bar working / 170 bar burst – Yes, Hardness – Up to 50HRc, REDUCER TYPE – Hardened Steel, Typical Application – Deck,
