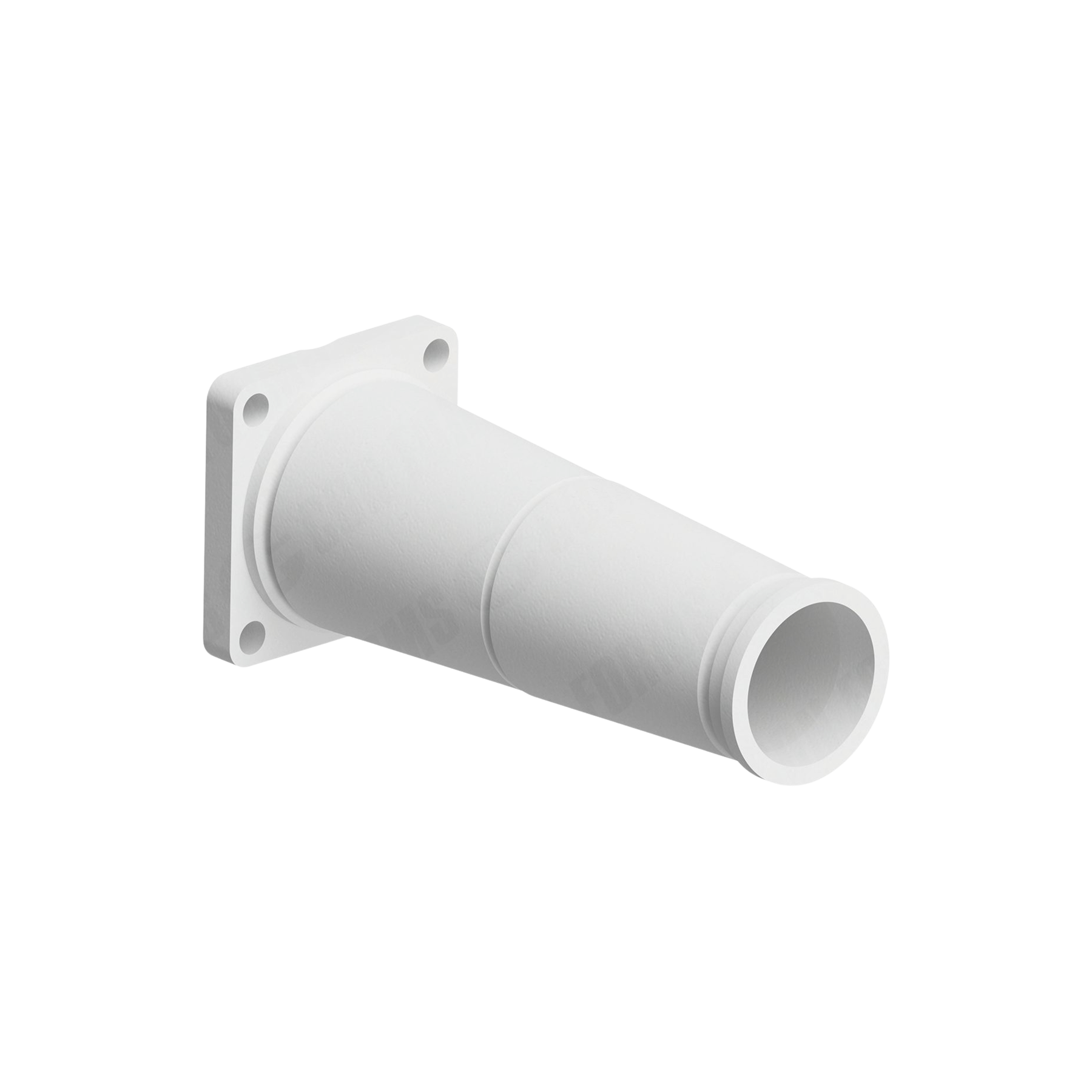

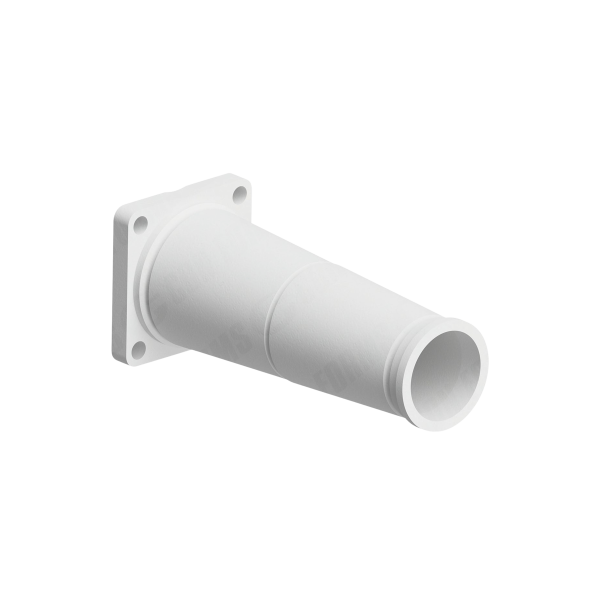

Reducer – Reducer | ID: DN180/7″ Schwing 4-bolt – DN125/5″ Hevi-Duty™ | OAL: 21.51″ / 546mm | HT

Description

Reducer | ID: DN180/7″ Schwing 4-bolt – DN125/5″ Hevi-Duty™ | OAL: 21.51″ / 546mm | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN127/5″, Inlet End Style – 4-bolt flange, Outlet End Style – Hevi-Duty™, LENGTH [IN/MM] – 21.51″ / 546mm, HEAT TREATMENT – Heat Treated, PRESSURE RATING [BAR/PSI] – 130 / 1885,
