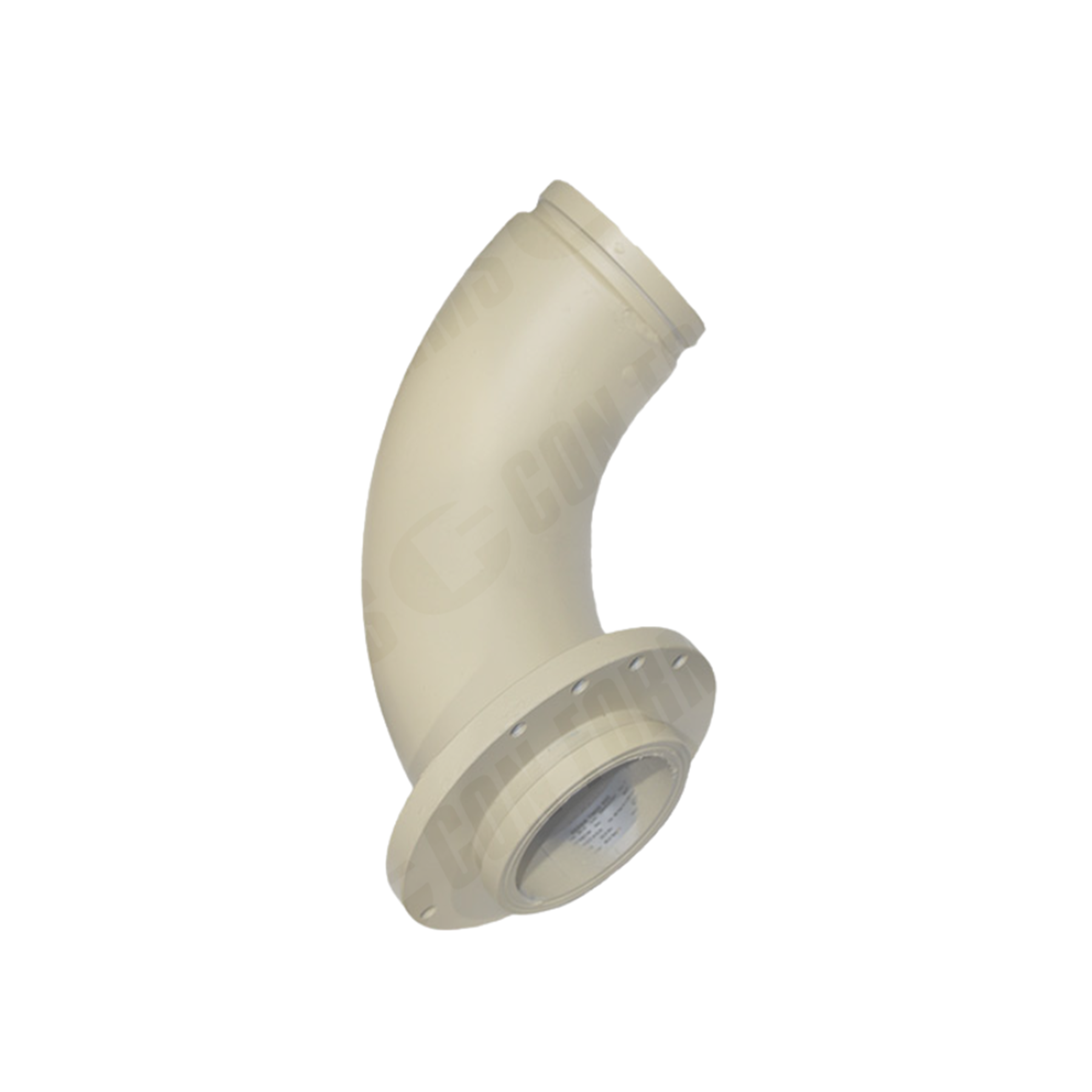

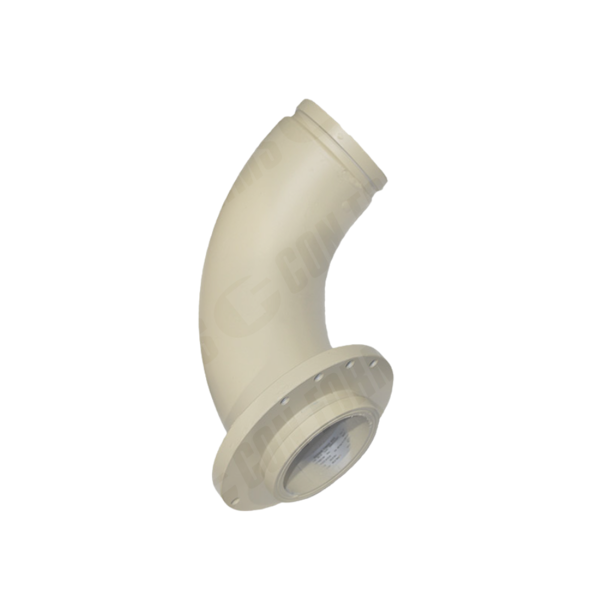

Reducing Elbow/Bend – Reducing Elbow/Bend | ID: DN180/7″ Ring – DN127/5″ Ring | WT: 0.312 | BA: 90 | CLR: 18″ | 2-bolt flange both ends

Description

Reducing Elbow/Bend | ID: DN180/7″ Ring – DN127/5″ Ring | WT: 0.312 | BA: 90 | CLR: 18″ | 2-bolt flange both ends Backend components are designed for the highest pressure applications in the pumping system, along with features that result in a long product life.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN127/5″, ANGLE [DEGREES] – 90°, Inlet End Style – Ring & 2-Bolt Flange, Outlet End Style – Ring & 2-Bolt Flange, Center-to-Tangent-Face (90° Elbow) – 2 Tangents – 38.20″ / 31.52″, Centerline Radius (CLR) – 18.00″, WALL THICKNESS [IN/MM] – 0.312″ / 7.9mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
