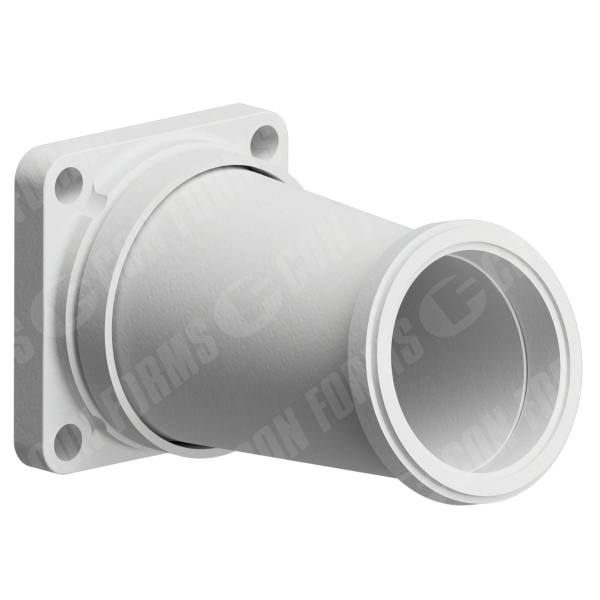

Backend Reducer – Backend Reducer | ID: DN180/7″ 4-Bolt Cast Flange – DN150/6″ Euro Female | OAL: 14.5″ / 368mm | 14° tilt at 6″ end | HT

Description

Backend Reducer | ID: DN180/7″ 4-Bolt Cast Flange – DN150/6″ Euro Female | OAL: 14.5″ / 368mm | 14° tilt at 6″ end | HT Backend components are designed for the highest pressure applications in the pumping system, along with features that result in a long product life.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN150/6″, Inlet End Style – 4-Bolt Cast Flange, Outlet End Style – Euro Female, LENGTH [IN/MM] – 14.50″ / 368mm, HEAT TREATMENT – Heat Treated, PRESSURE RATING [BAR/PSI] – 85 / 1233, Tilt – 14° Tilt at 6″ end,
