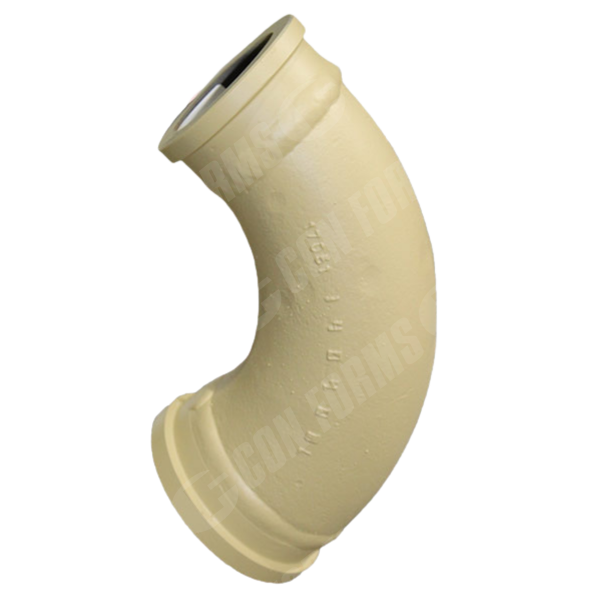

Reducing Elbow/Bend – Reducing Elbow/Bend | DN127/5″ Metric – DN100/4″ Hevi-Duty™ | BA: 90 | CLR: 7.5″ | HT

$744.88

SKU: RE5040MDH Categories: ,

Description

Reducing Elbow/Bend | DN127/5″ Metric – DN100/4″ Hevi-Duty™ | BA: 90 | CLR: 7.5″ | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INLET DIAMETER [IN] – DN127/5″, OUTLET DIAMETER [IN] – DN100/4″, ANGLE [DEGREES] – 90°, Inlet End Style – Metric, Outlet End Style – Hevi-Duty™, HEAT TREATMENT – Heat Treated, Center-to-Face – 90° Elbow – 228 x 228mm, Centerline Radius (CLR) – 7.50″, WALL THICKNESS [IN/MM] – Biased toward high wear areas, PRESSURE RATING [BAR/PSI] – 85 / 1233,

Additional information

Weight 21.500000000 lbs
