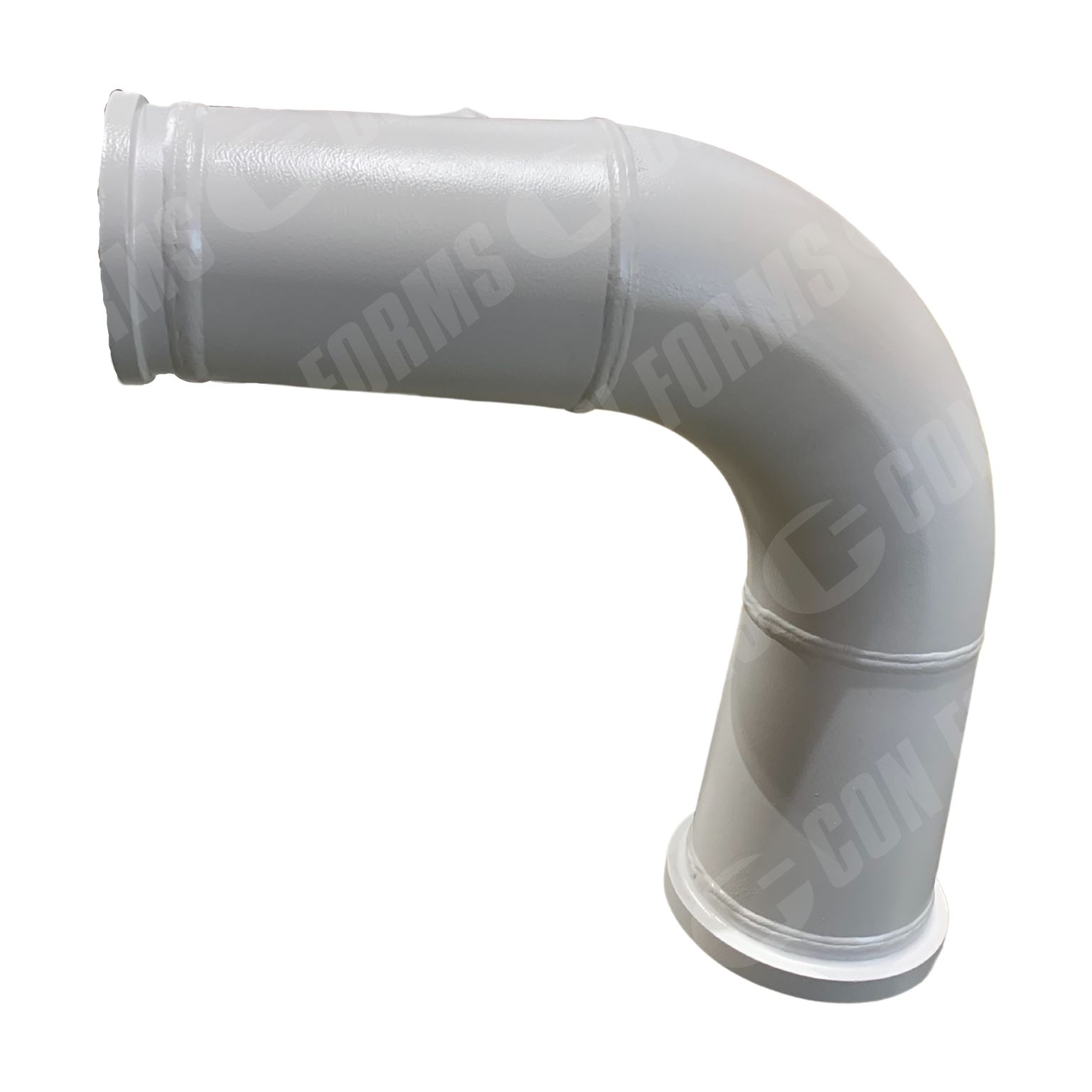

Reducing Elbow/Bend – Reducing Elbow/Bend | DN180/7″ Euro Female – DN127/5″ Hevi-Duty™ | WT: 0.28 | BA: 90 | CLR: 9″

Description

Reducing Elbow/Bend | DN180/7″ Euro Female – DN127/5″ Hevi-Duty™ | WT: 0.28 | BA: 90 | CLR: 9″ Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INLET DIAMETER [IN] – DN180/7″, OUTLET DIAMETER [IN] – DN127/5″, ANGLE [DEGREES] – 90°, Inlet End Style – Euro Female, Outlet End Style – Hevi-Duty™, Center-to-Tangent-Face (90° Elbow) – 2 Tangents – 19.50″ / 19.50″, Centerline Radius (CLR) – 9.00″, WALL THICKNESS [IN/MM] – 0.280″ / 7.1mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
