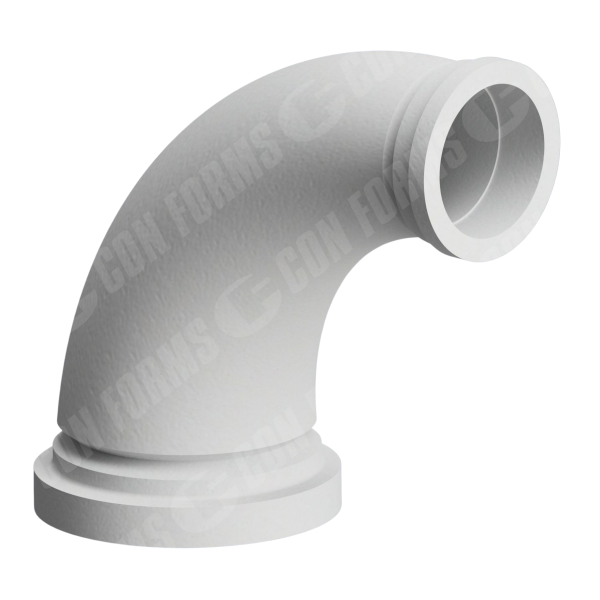

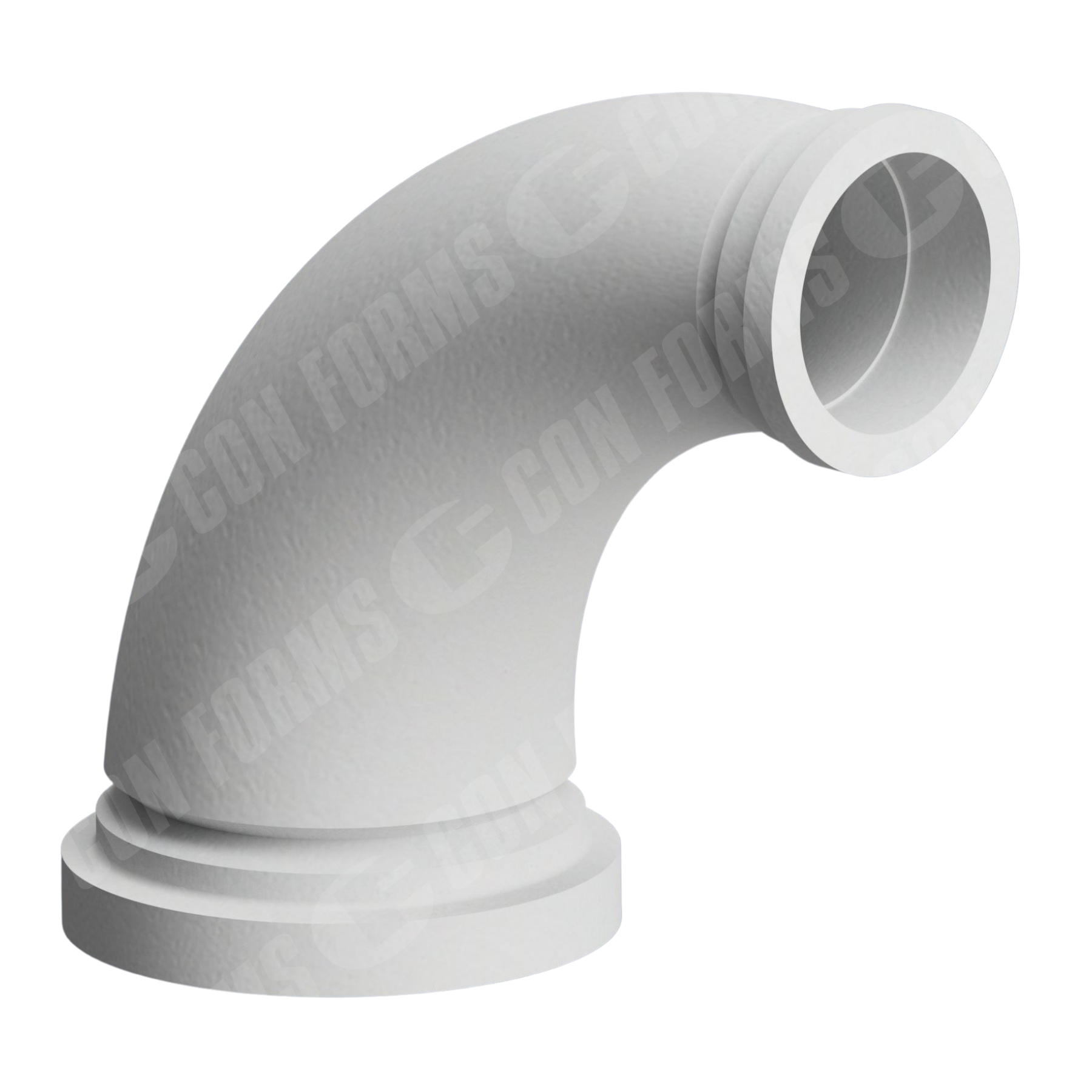

Reducing Elbow/Bend – Reducing Elbow/Bend | DN150/6″ SHP Female – DN100/4″ HD | WT: 0.375″ | BA: 90 | CLR: 9″ | HT
$1,540.48
Description
Reducing Elbow/Bend | DN150/6″ SHP Female – DN100/4″ HD | WT: 0.375″ | BA: 90 | CLR: 9″ | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INLET DIAMETER [IN] – DN150/6″, OUTLET DIAMETER [IN] – DN100/4″, ANGLE [DEGREES] – 90°, Inlet End Style – SHP Female, Outlet End Style – Hevi-Duty™, HEAT TREATMENT – Heat Treated, Center-to-Tangent-Face (90° Elbow) – 2 Tangents – 11.00″ / 10.50″, Centerline Radius (CLR) – 9.00″, WALL THICKNESS [IN/MM] – 0.375″ / 9.5mm, PRESSURE RATING [BAR/PSI] – 85 / 1233,
