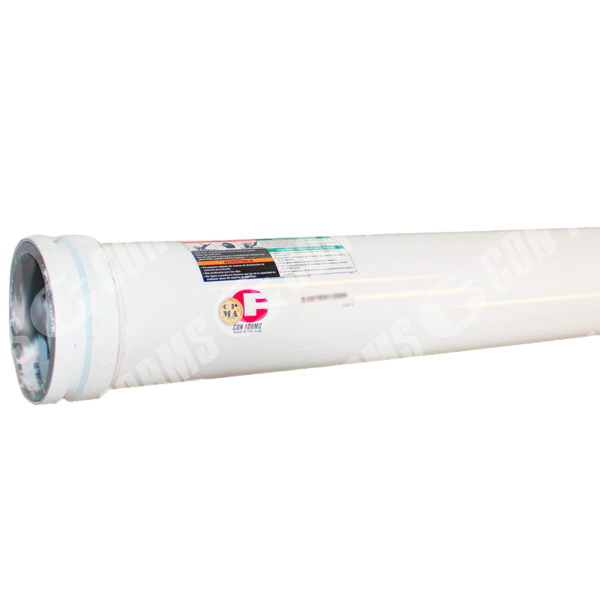

Misc Pipe – Misc Pipe | ID: DN150/5.75″ | OAL: 19.69″ / 500mm | WT: 0.5 | End: Schwing SHP M/F | HT

Description

Misc Pipe | ID: DN150/5.75″ | OAL: 19.69″ / 500mm | WT: 0.5 | End: Schwing SHP M/F | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN150/6″, END STYLE – Schwing SHP Male / Female, LENGTH [IN/MM] – 19.69″ / 500mm, HEAT TREATMENT – Heat Treated, WALL THICKNESS [IN/MM] – 0.50″ / 12.7mm, Wall Type – Single Wall, MODEL – Misc Pipe, PRESSURE RATING [BAR/PSI] – 200 / 2900,
